WE ARE A PREMIER CHOICE FOR YOU
HENAN SEVEN INDUSTRY CO., LTD is a professional spider crane manufacturer and supplier with 30+ years of equipment sales experience. We design, manufacture, install and maintain spider cranes. Our products have excellent quality and performance. Provide OEM and ODM services
WHAT TYPE OF SPIDER CRANE DO YOU NEED?
SEVENCRANE offers a full range of mini crawler cranes (spider cranes). Our machines have a variety of driving methods to meet customer requirements in different countries or regions. Such as diesel engines, electric motors, petrol engines. Currently, SEVENCRANE can provide 1 ton, 3 ton, 5 ton, 8 ton, 10 ton and 12 ton spider cranes and accepts customization. In addition, we also provide related accessories required for spider cranes: hooks, hydraulic arms, manipulators, vacuum lift lifting beams, etc. Interested customers are welcome to leave messages and inquire at any time!

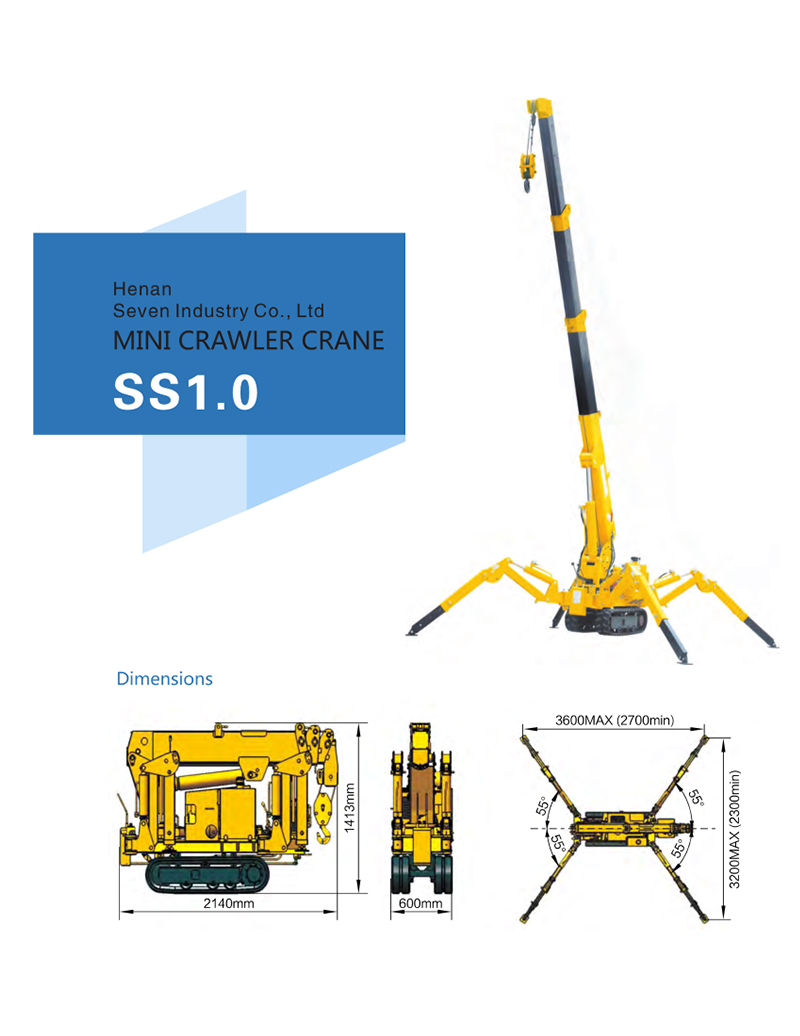

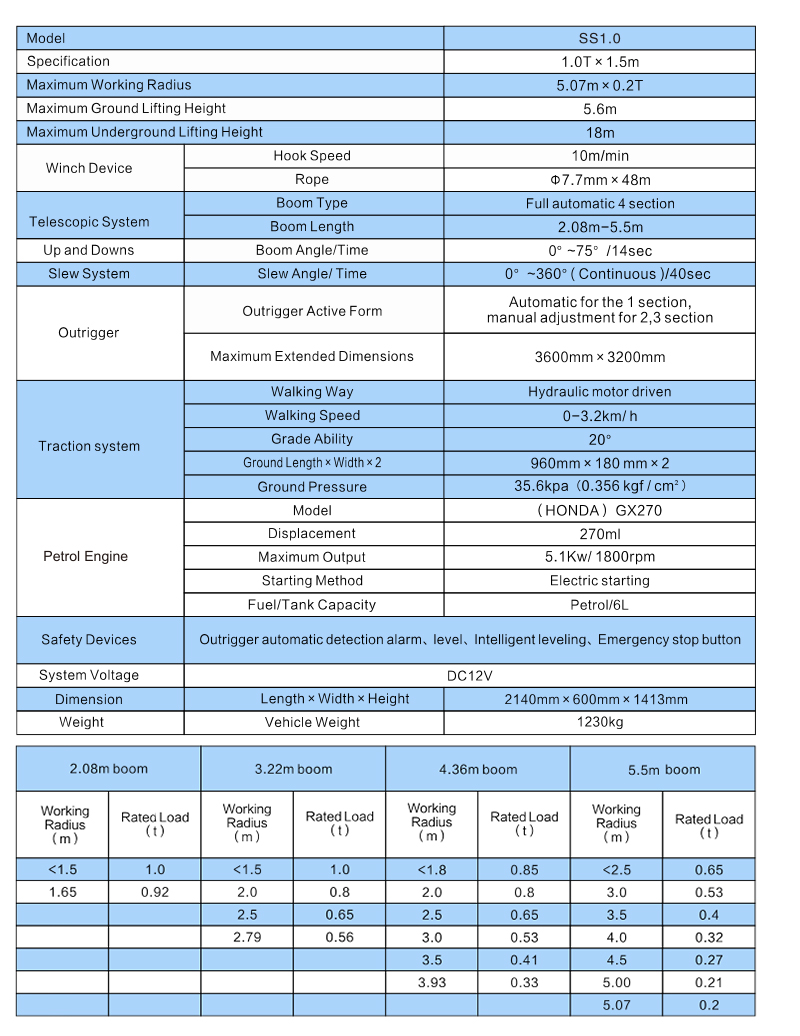

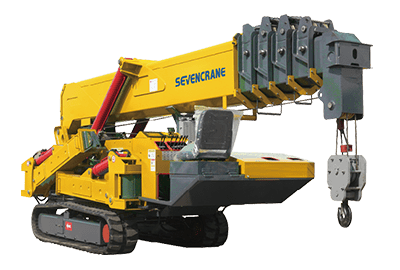

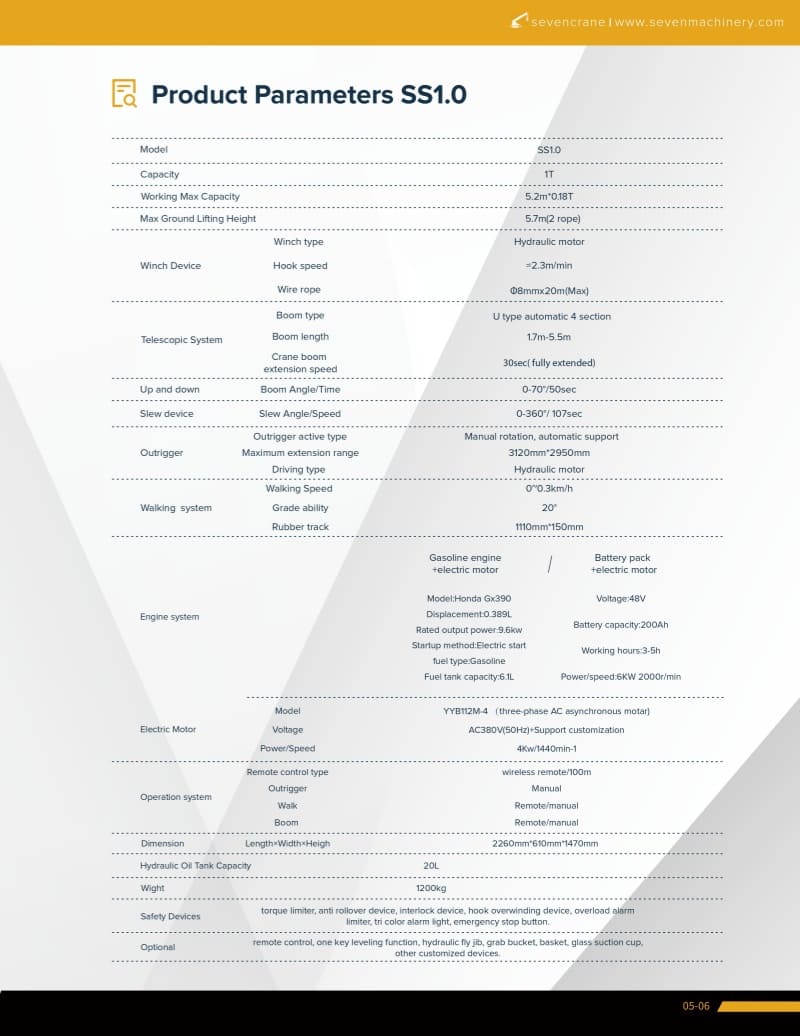

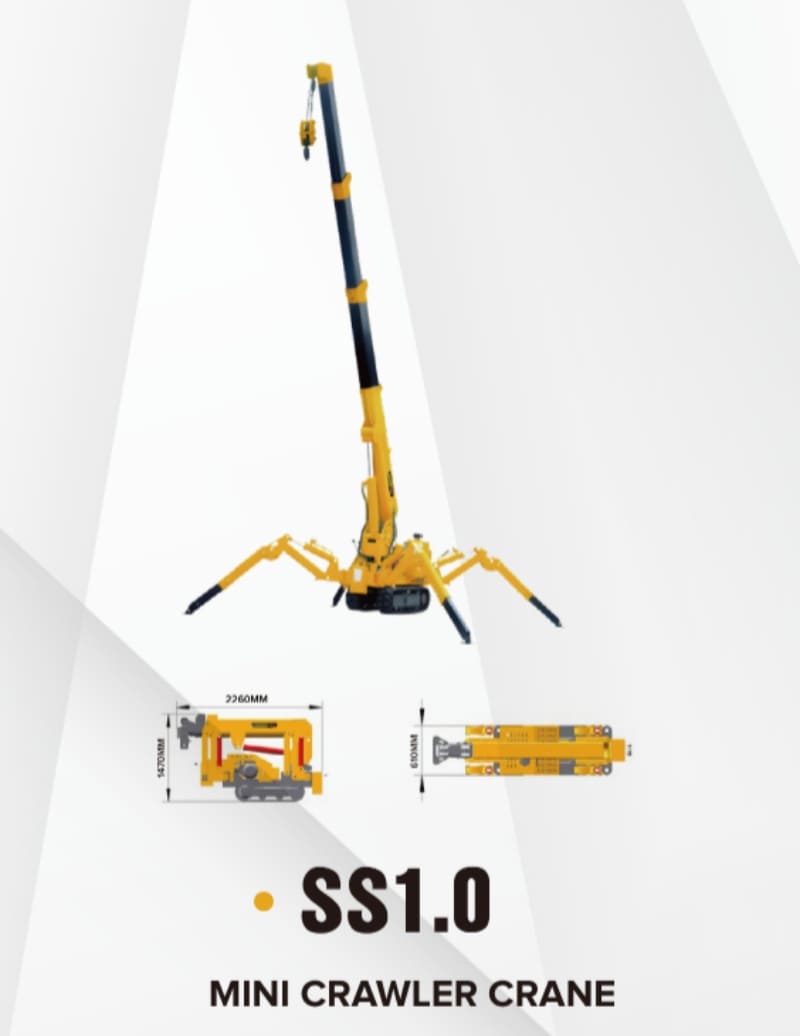

SS1.0
SS1.0

SS1.0
Capacity: 1T
Max ground lifting height: 5.7M
Max underground lifting height: 20M
Max working radius: 5.2M
Dimension: 2260mmX610mmX1470mm
Weight: 1200KG
Get Quotation
More parameters

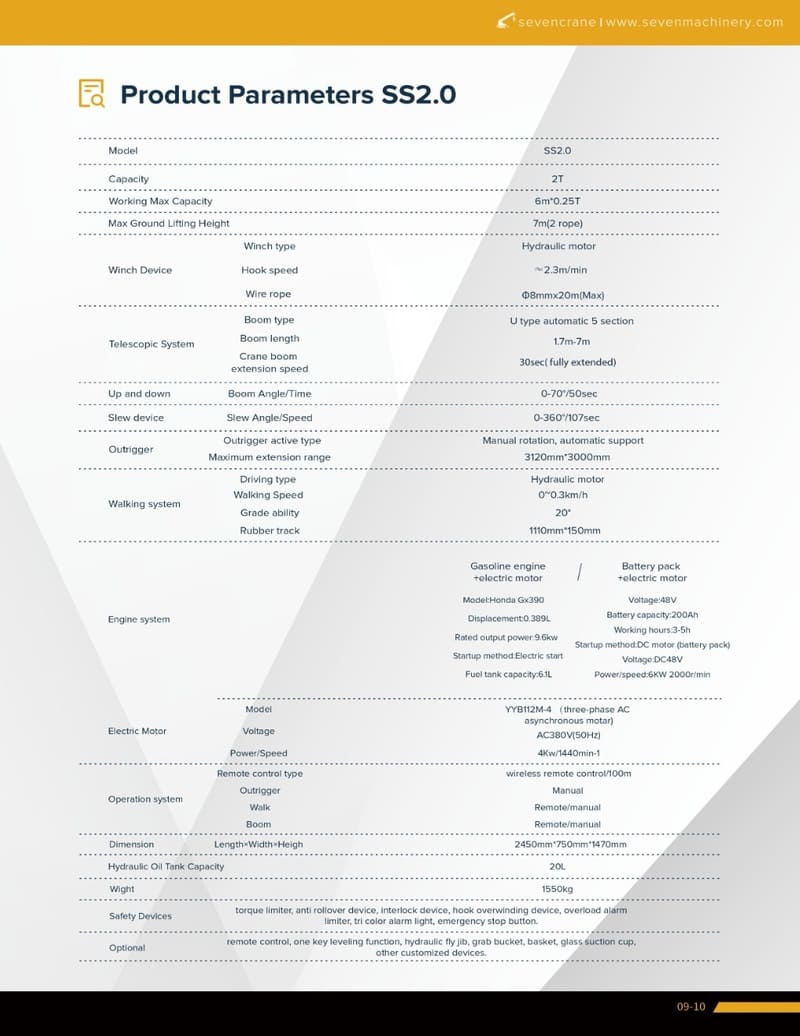

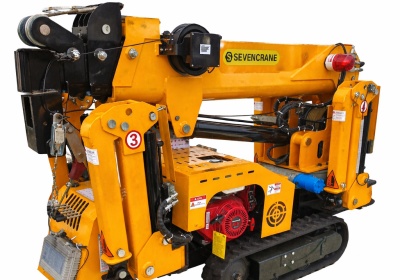

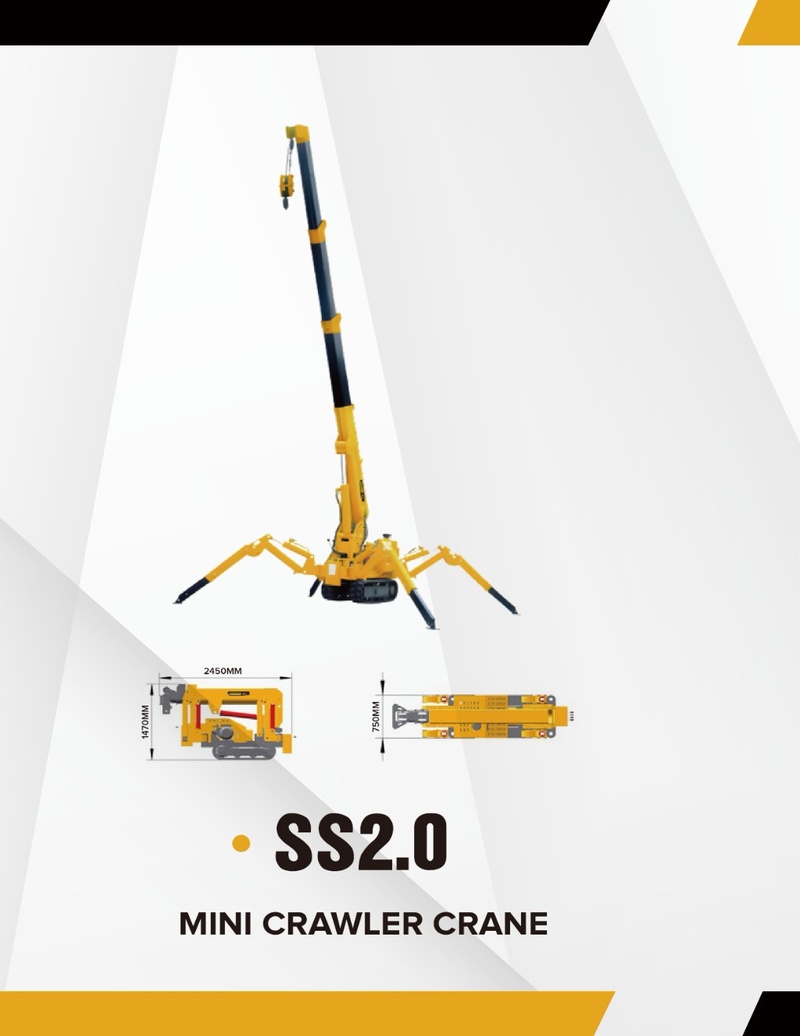

SS2.0
SS2.0

SS2.0
Capacity: 2T
Max ground lifting height: 7M
Max underground lifting height: 21M
Max working radius: 6M
Dimension: 2450mmX750mmX1470mm
Weight: 1550KG
Get Quotation
More parameters

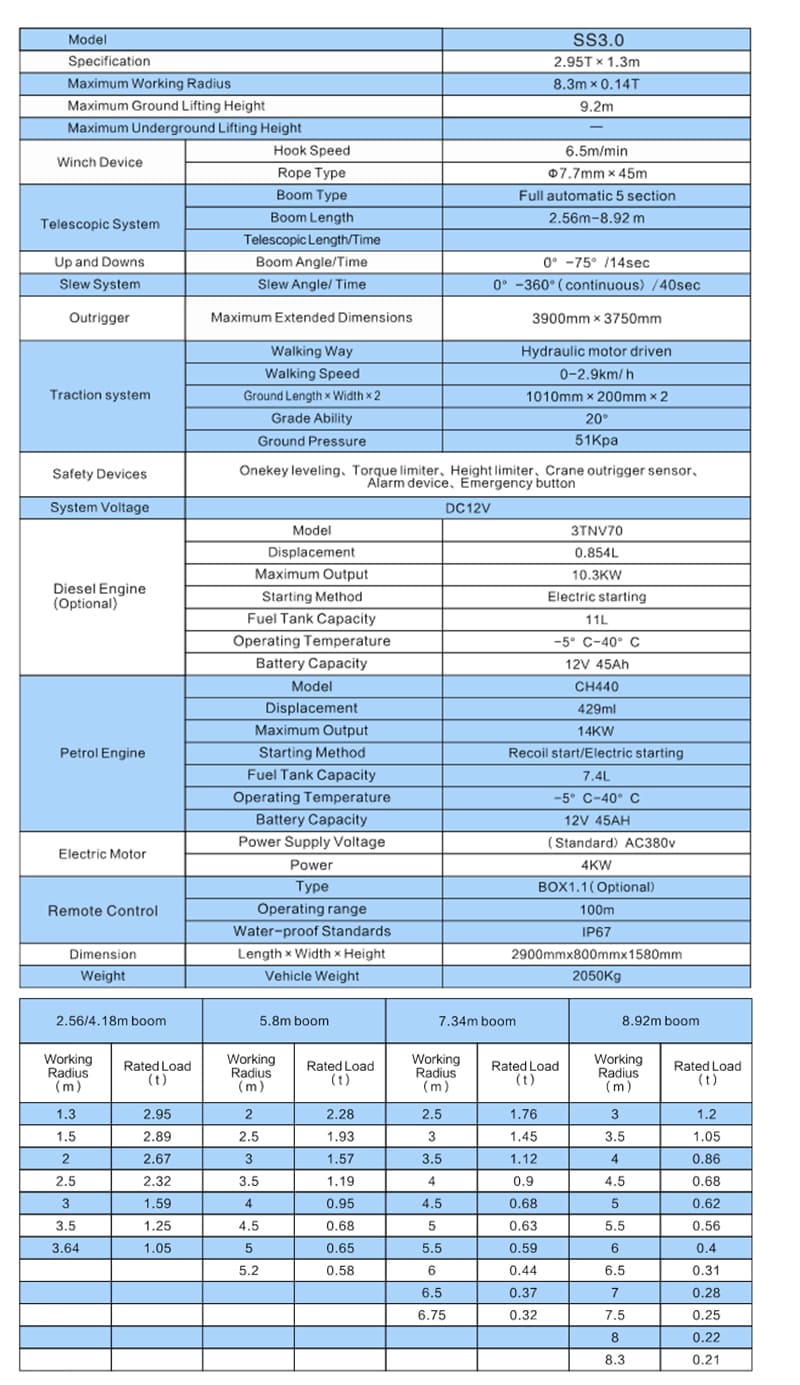

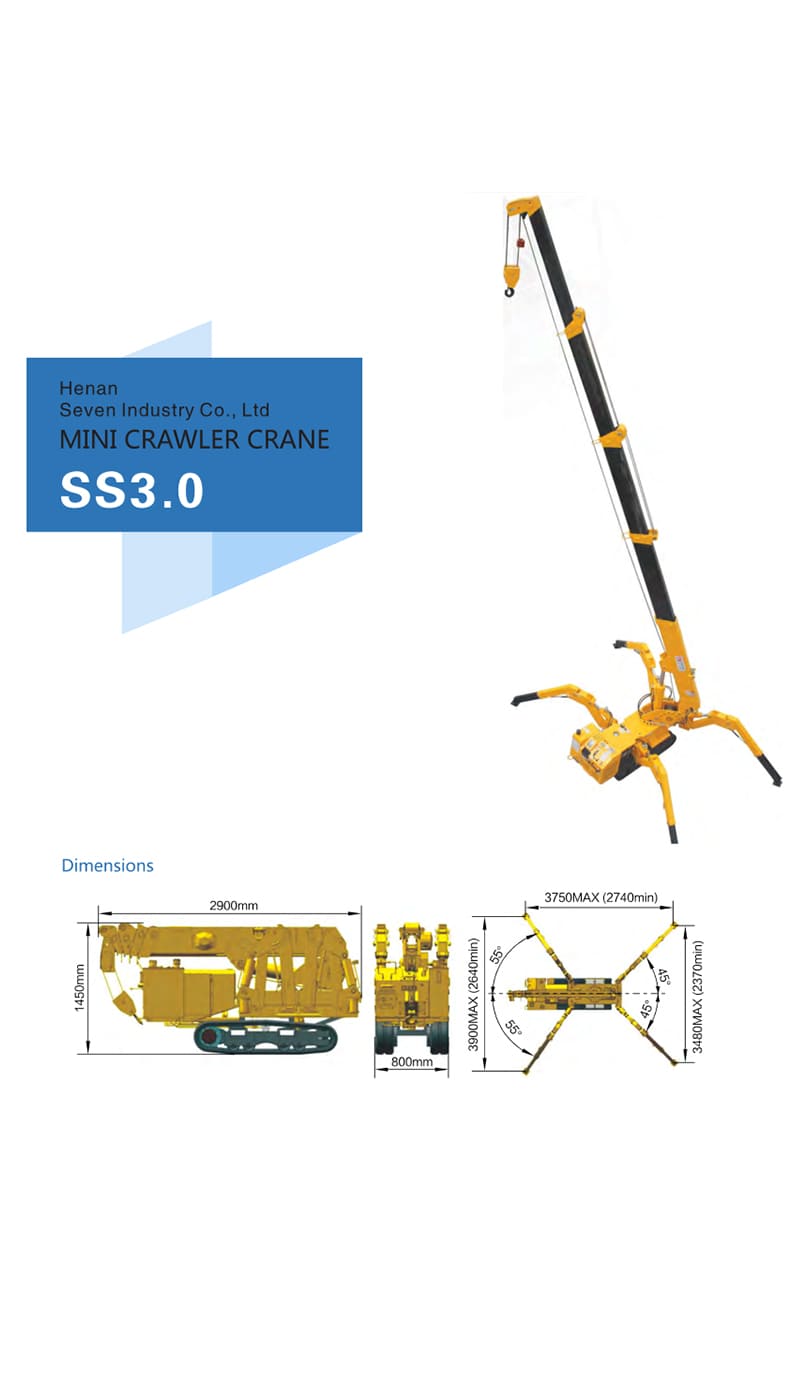

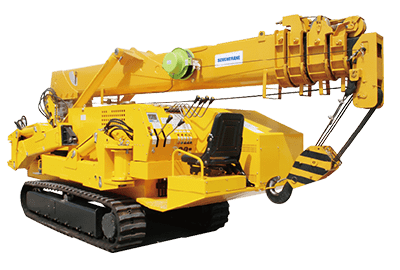

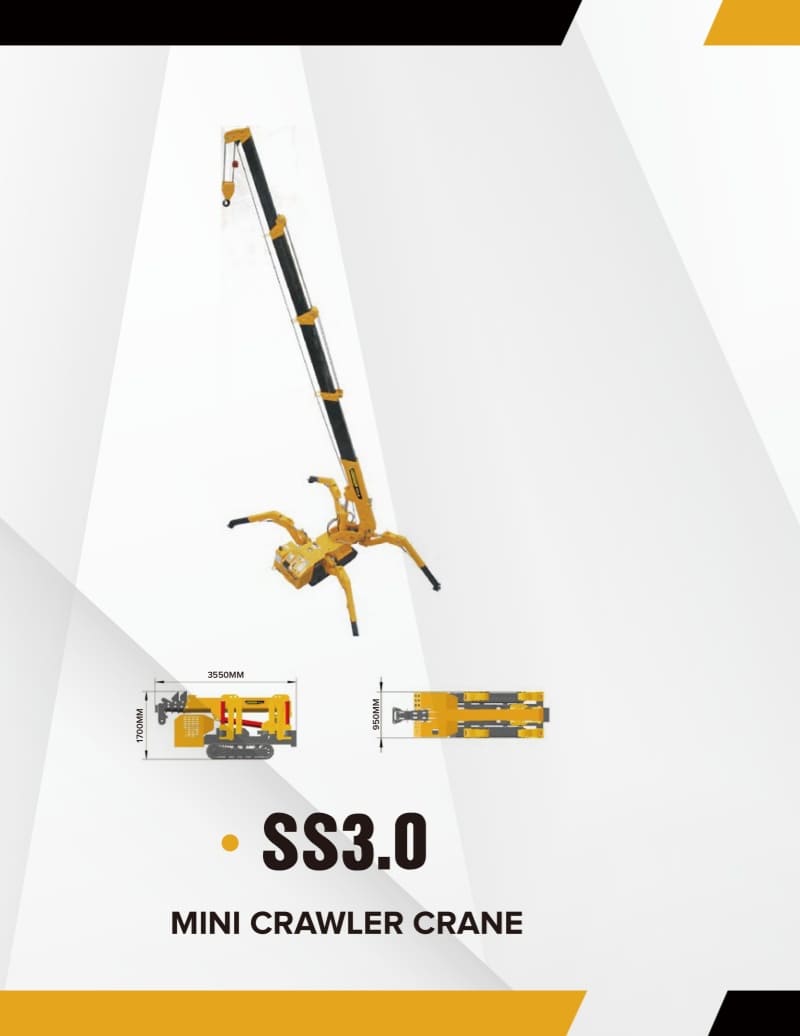

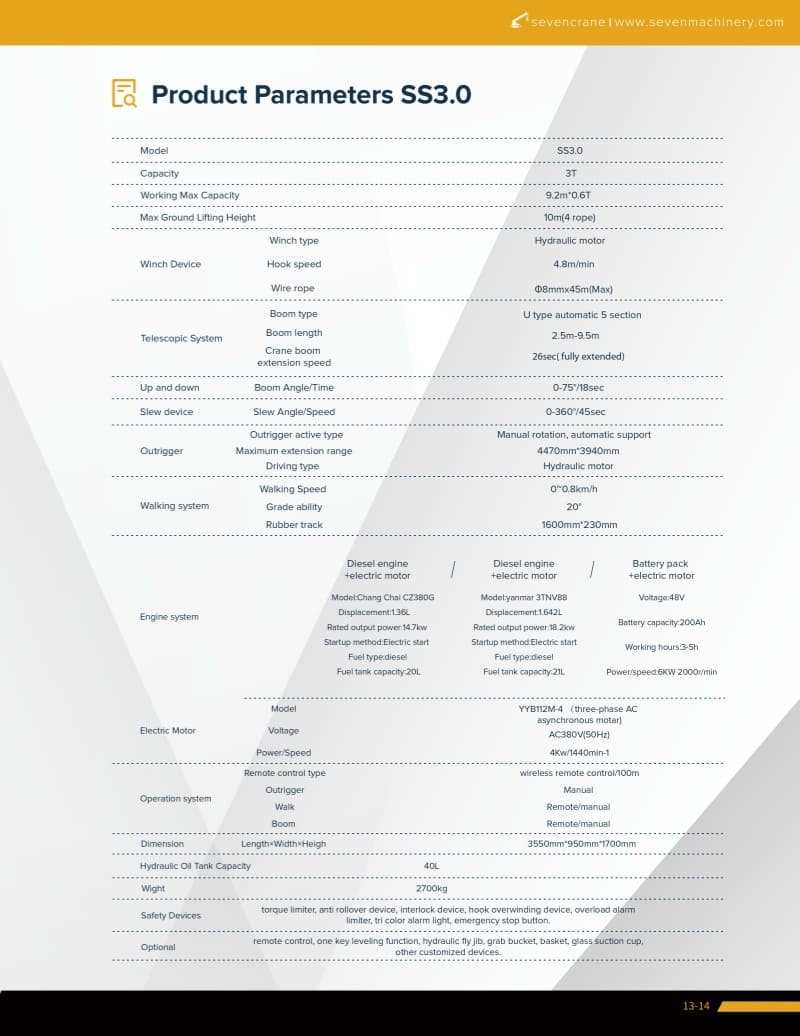

SS3.0
SS3.0

SS3.0
Capacity: 3T
Max ground lifting height: 10M
Max underground lifting height: 45M
Max working radius: 9.2M
Dimension: 3550mmX950mmX1700mm
Weight: 2700KG
Get Quotation
More parameters

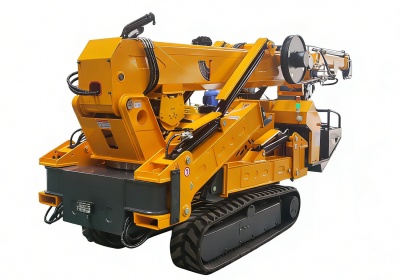

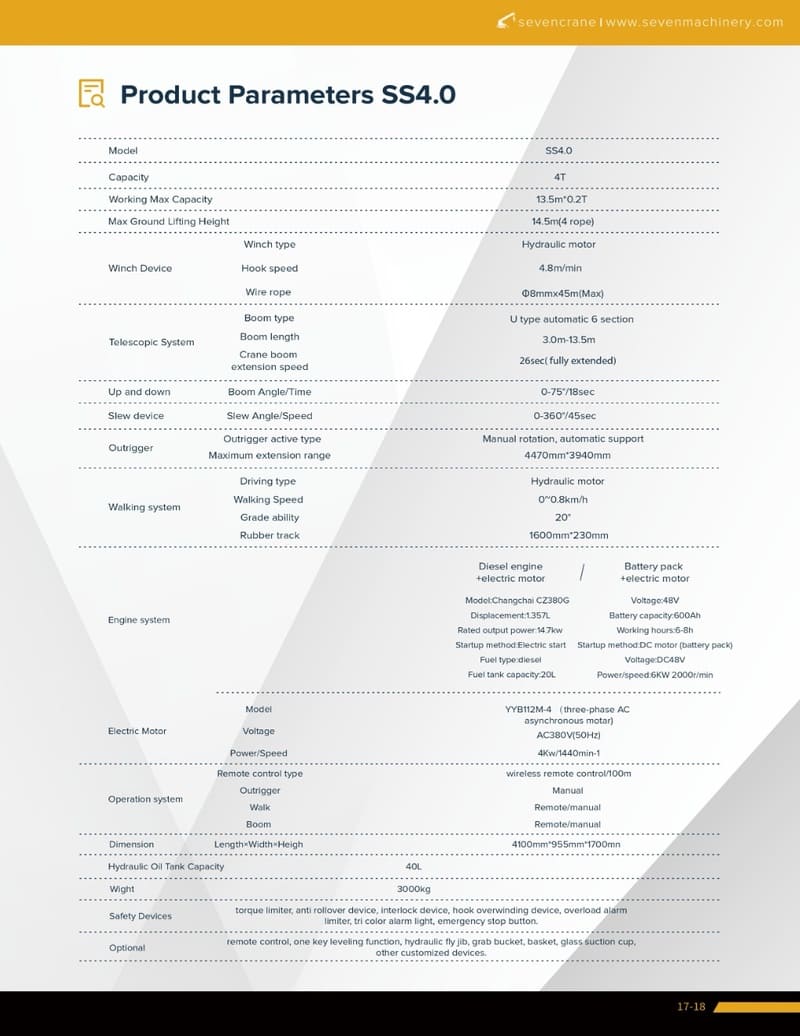

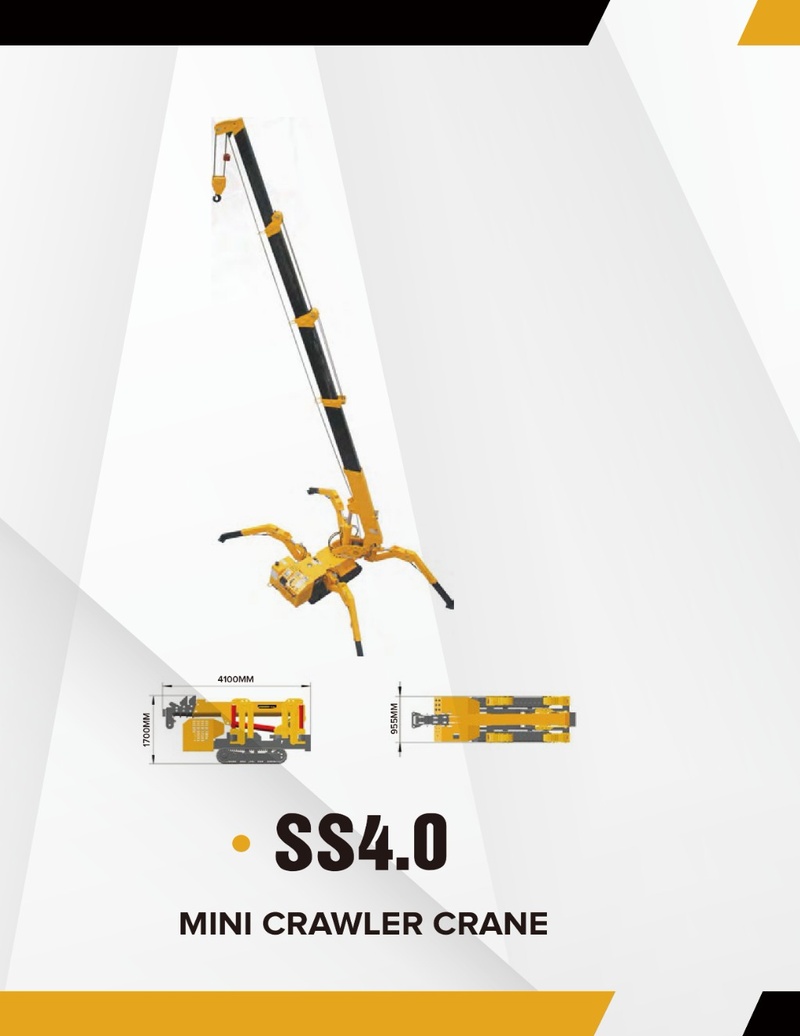

SS4.0
SS4.0

SS4.0
Capacity: 4T
Max ground lifting height: 14.5M
Max underground lifting height: 45M
Max working radius: 13.5M
Dimension: 4100mmX955mmX1700mm
Weight: 3000KG
Get Quotation
More parameters

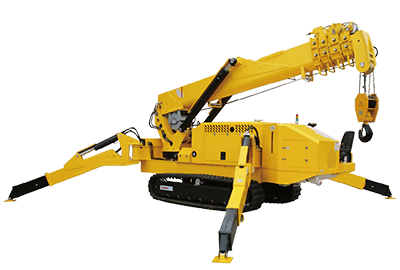

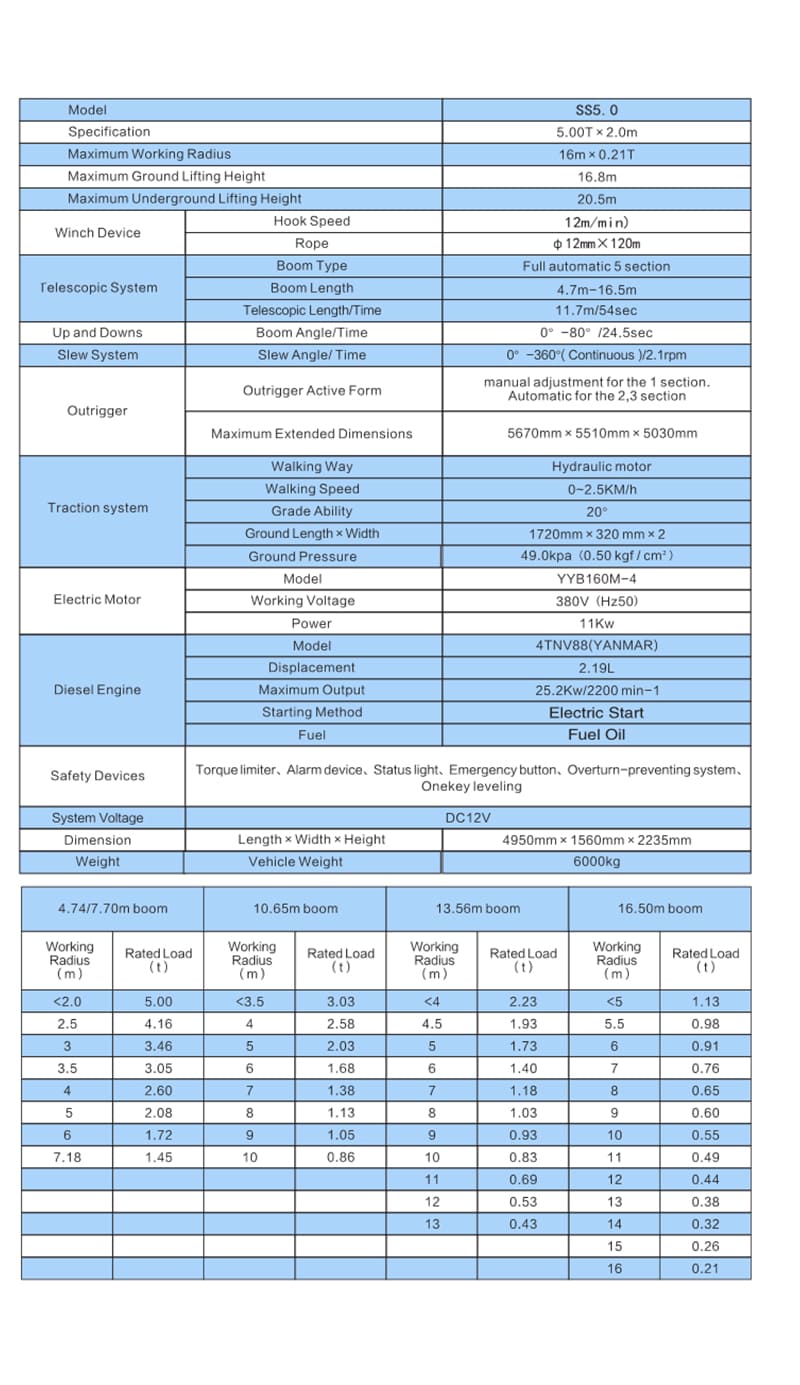

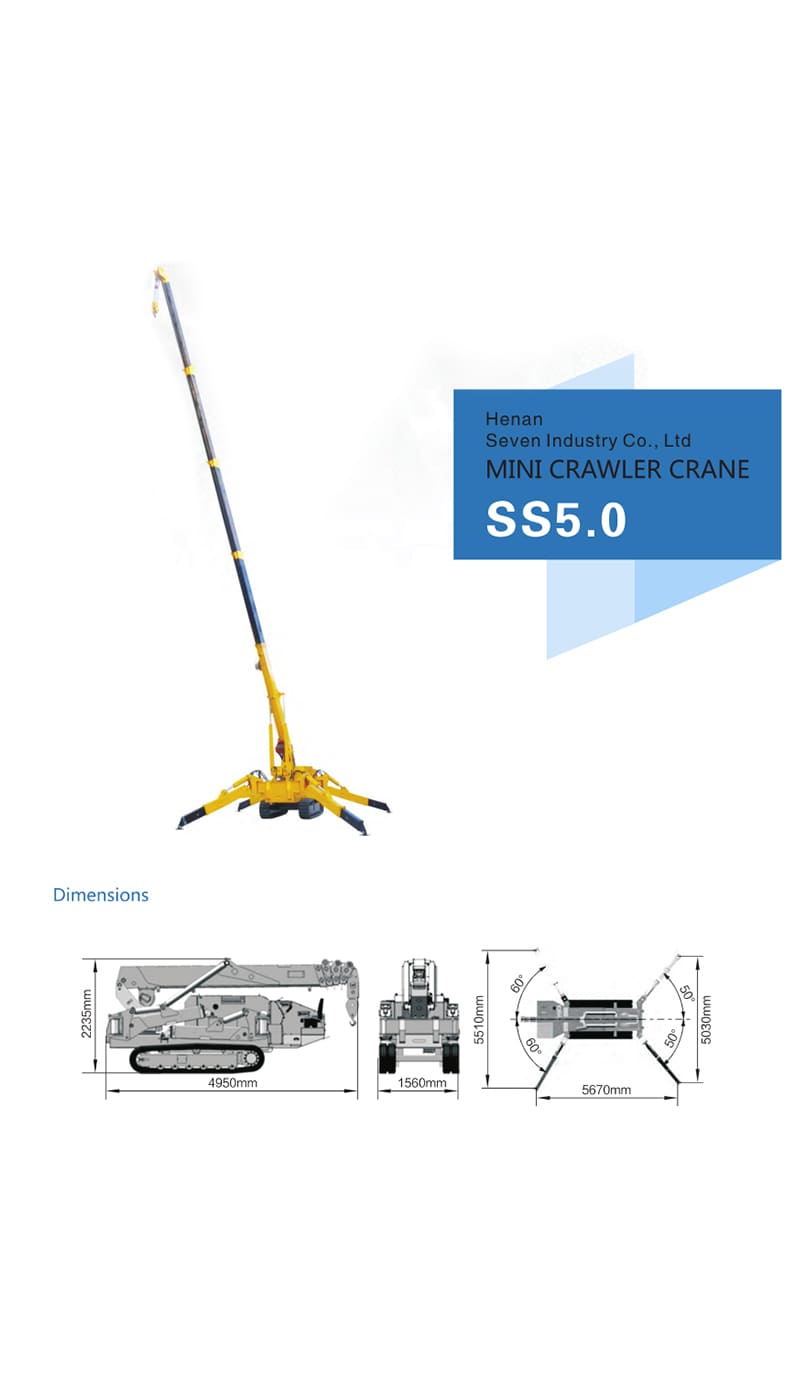

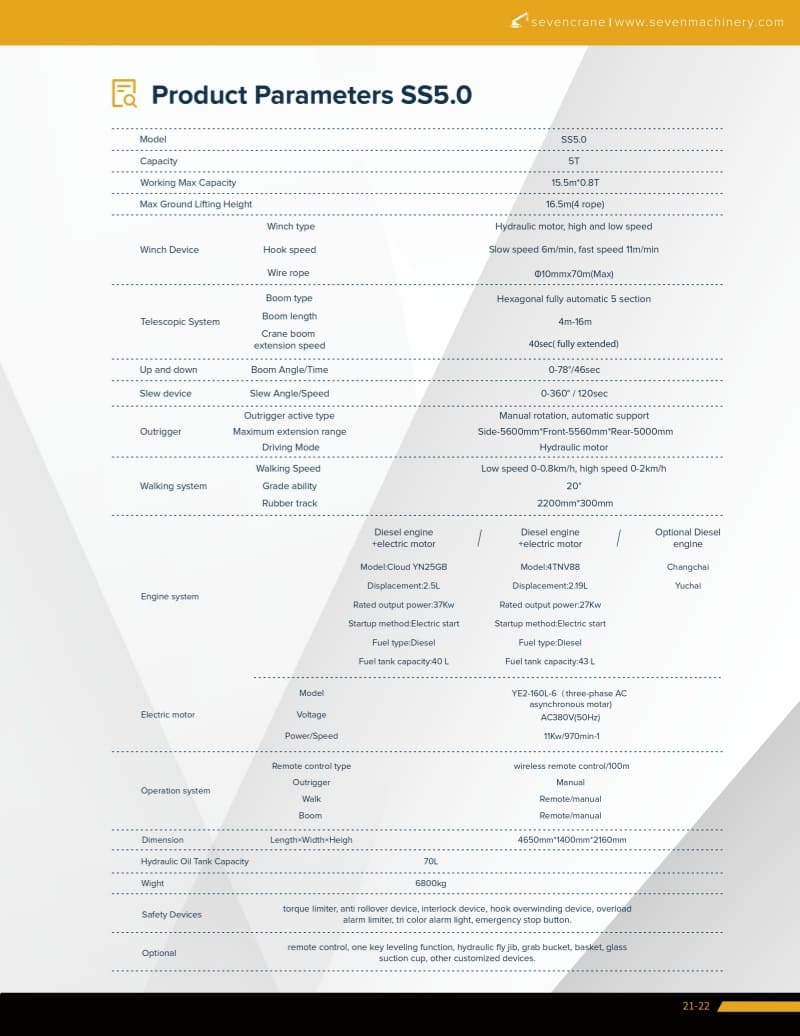

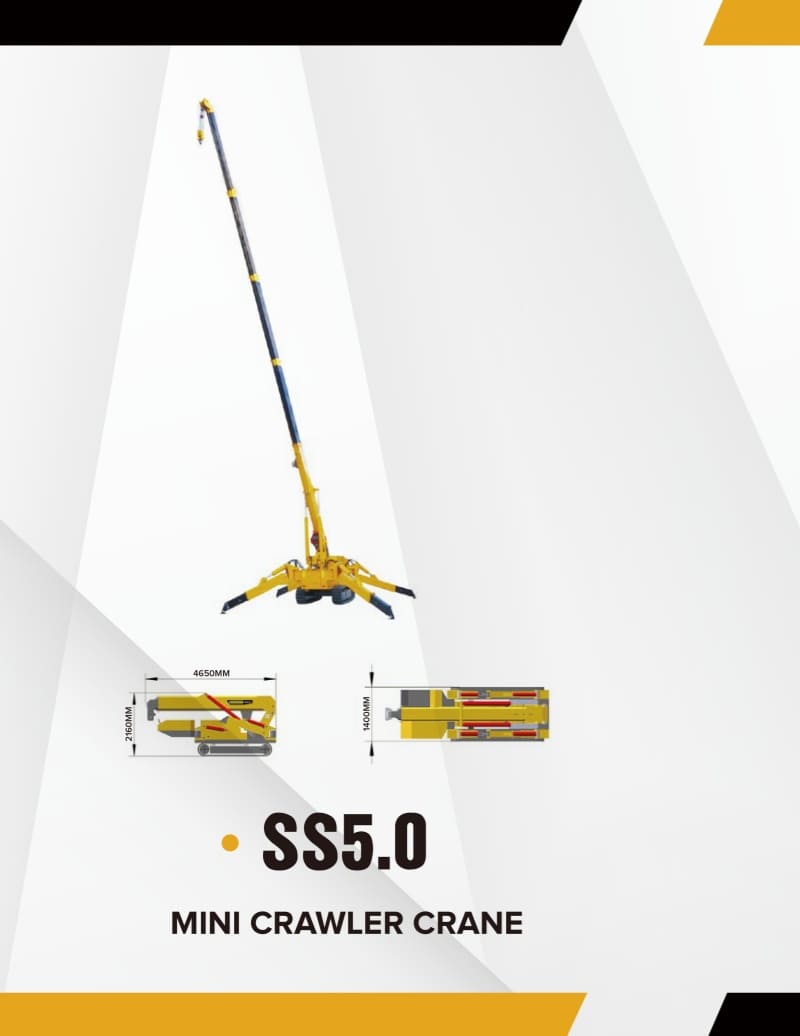

SS5.0
SS5.0

SS5.0
Capacity: 5T
Max ground lifting height: 16.5M
Max underground lifting height: 65.5M
Max working radius: 15.5M
Dimension: 4650mmX1400mmX2160mm
Weight: 6800KG
Get Quotation
More parameters

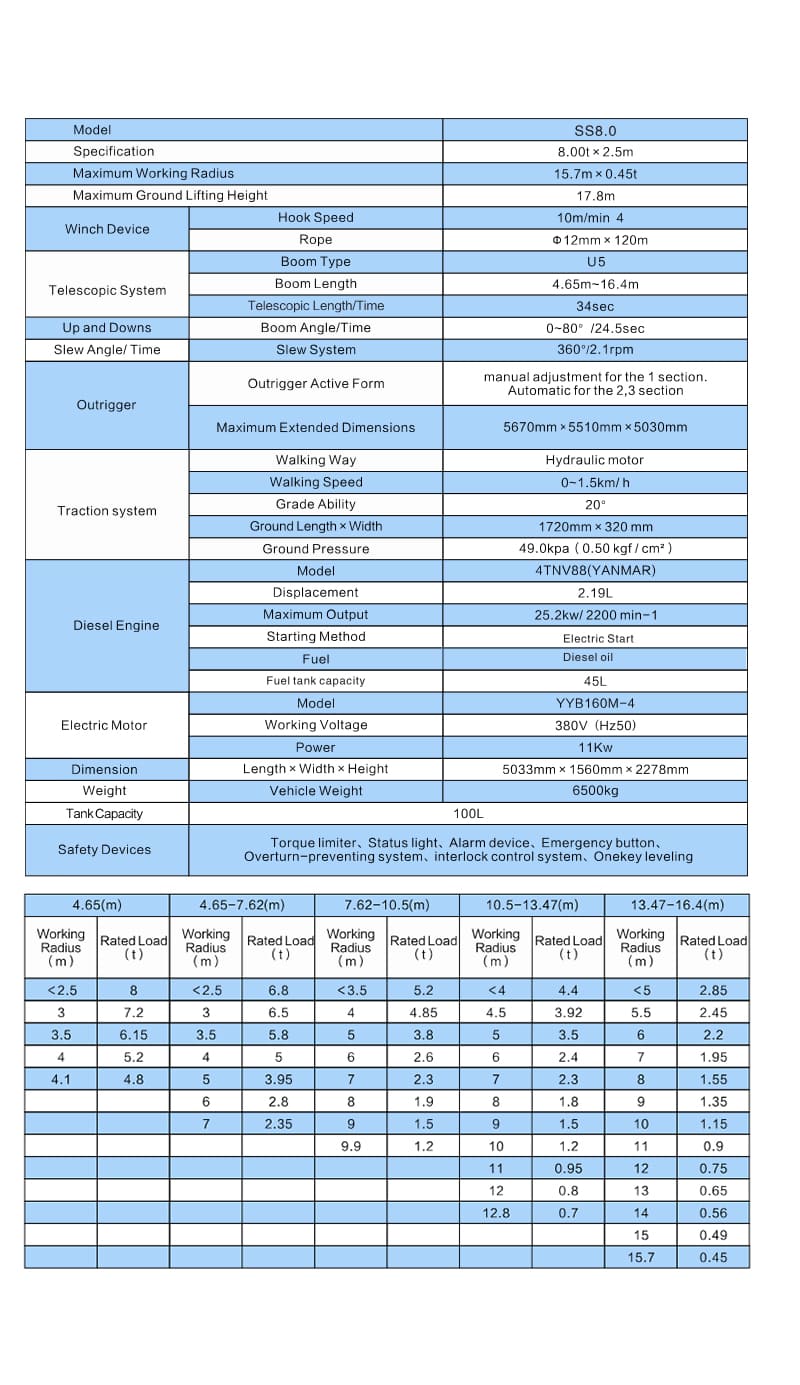

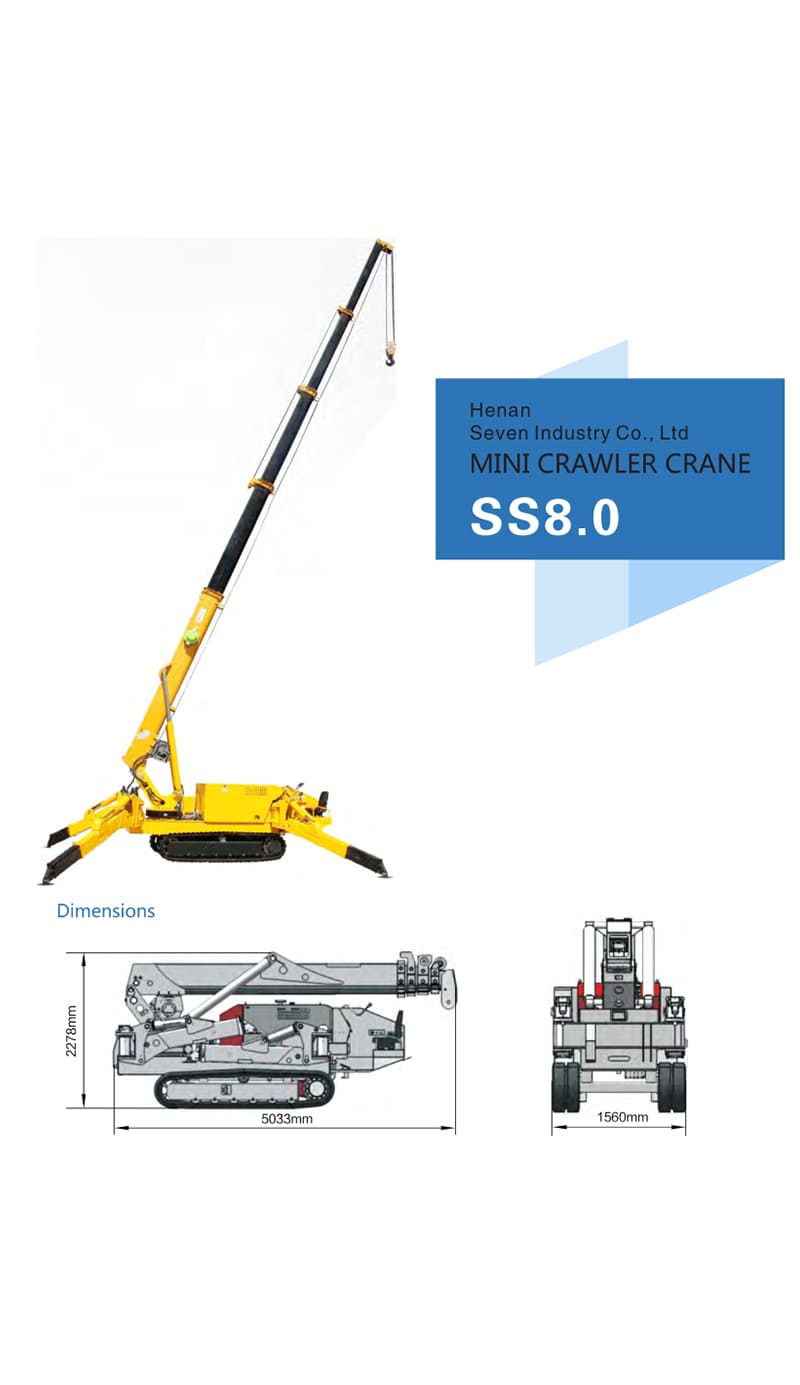

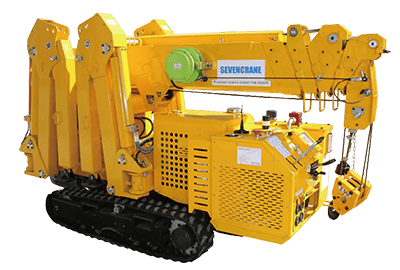

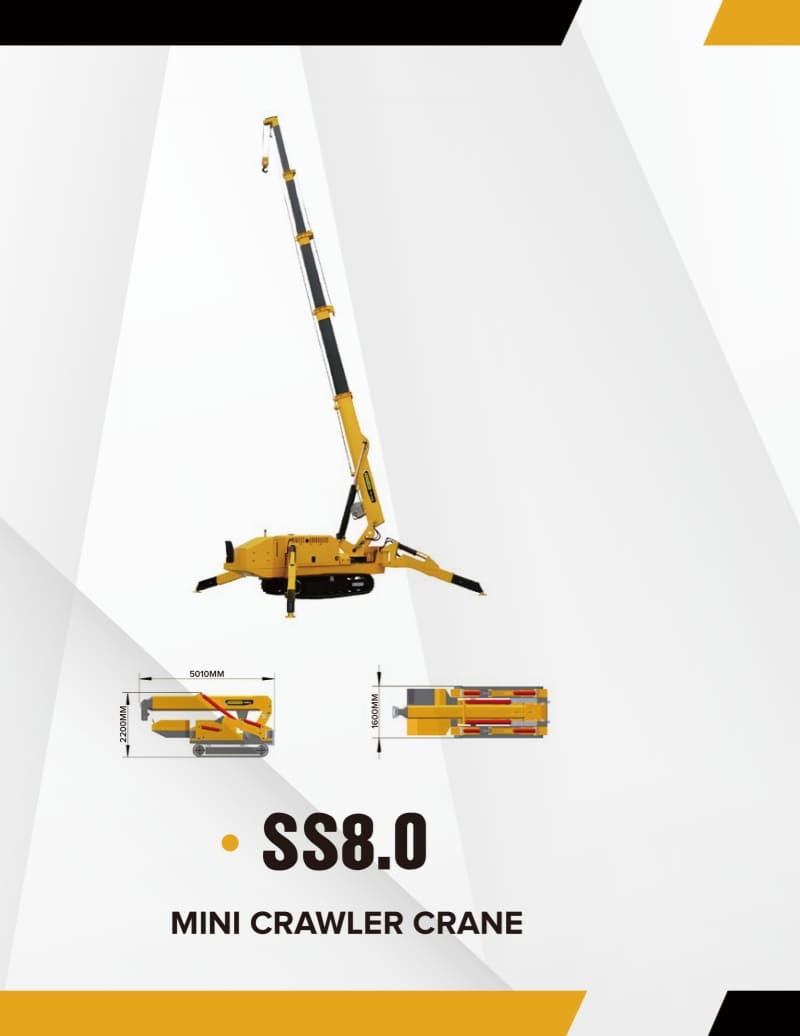

SS8.0
SS8.0

SS8.0
Capacity: 8T
Max ground lifting height: 17.5M
Max underground lifting height: 80M
Max working radius: 16.5M
Dimension: 5010mmX1600mmX2200mm
Weight: 7800KG
Get Quotation
More parameters

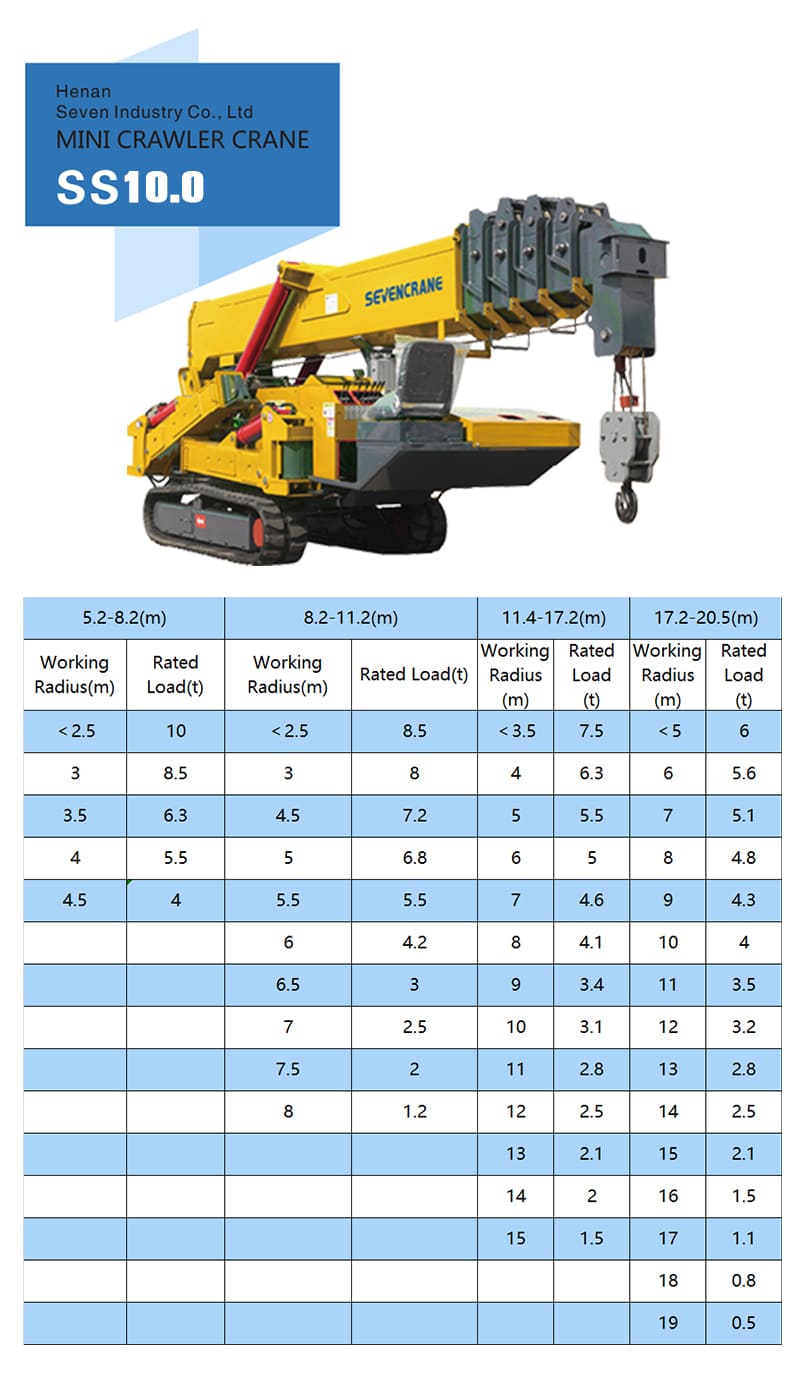

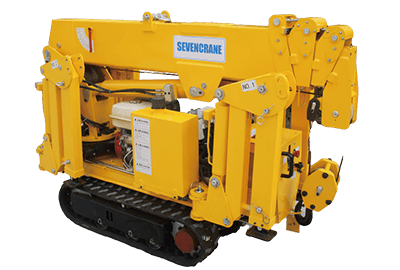

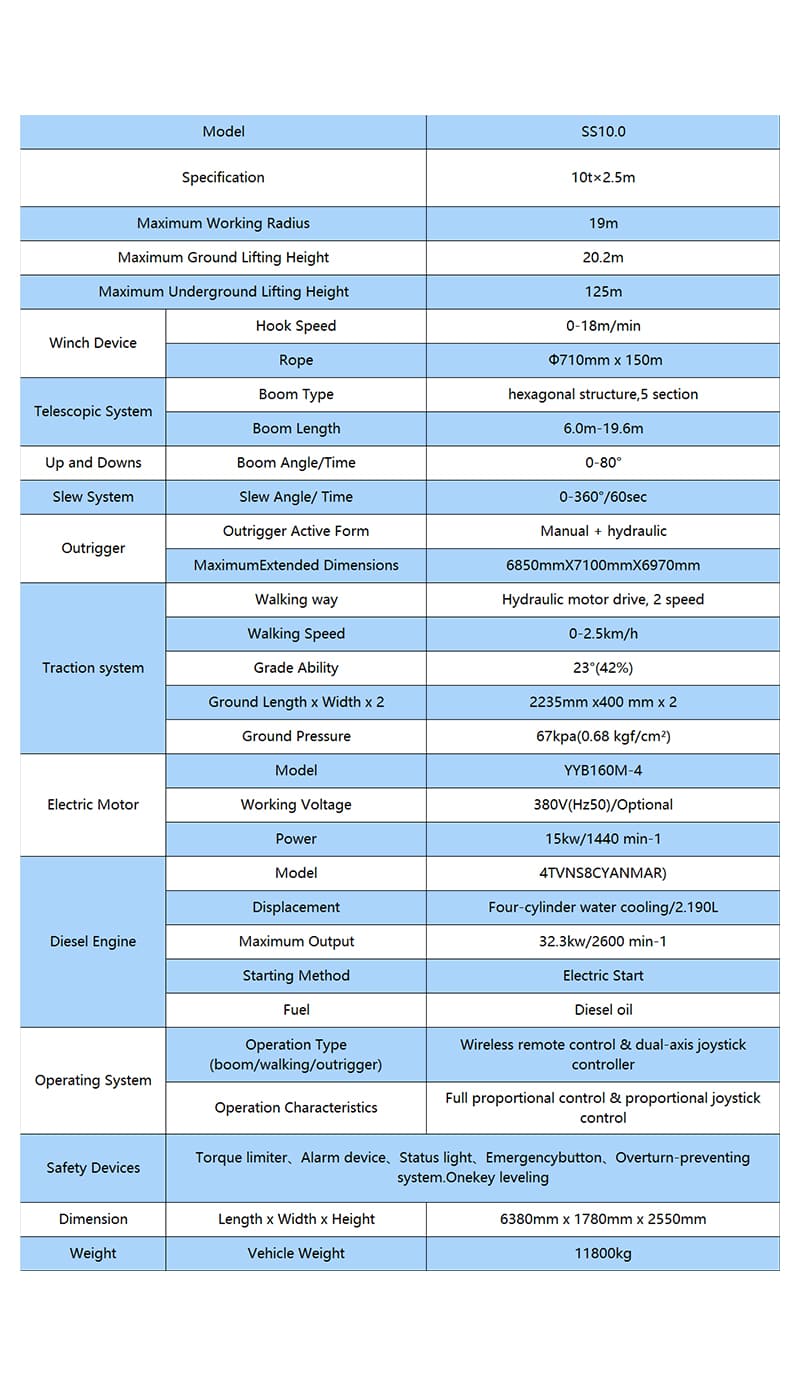

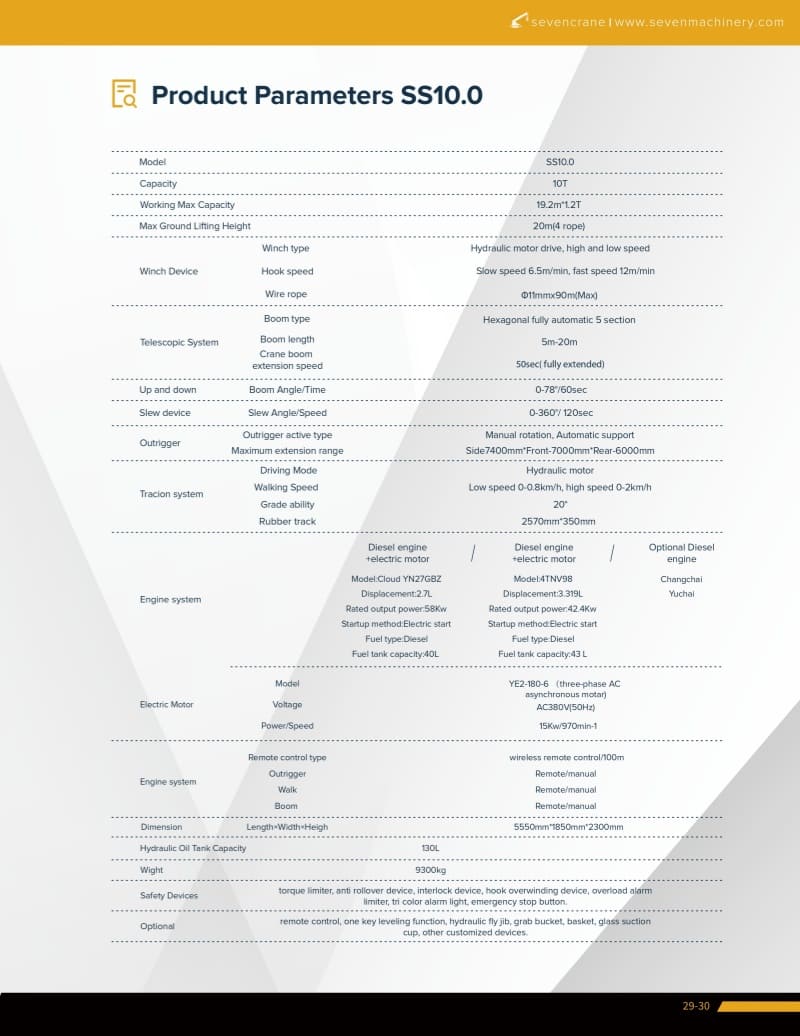

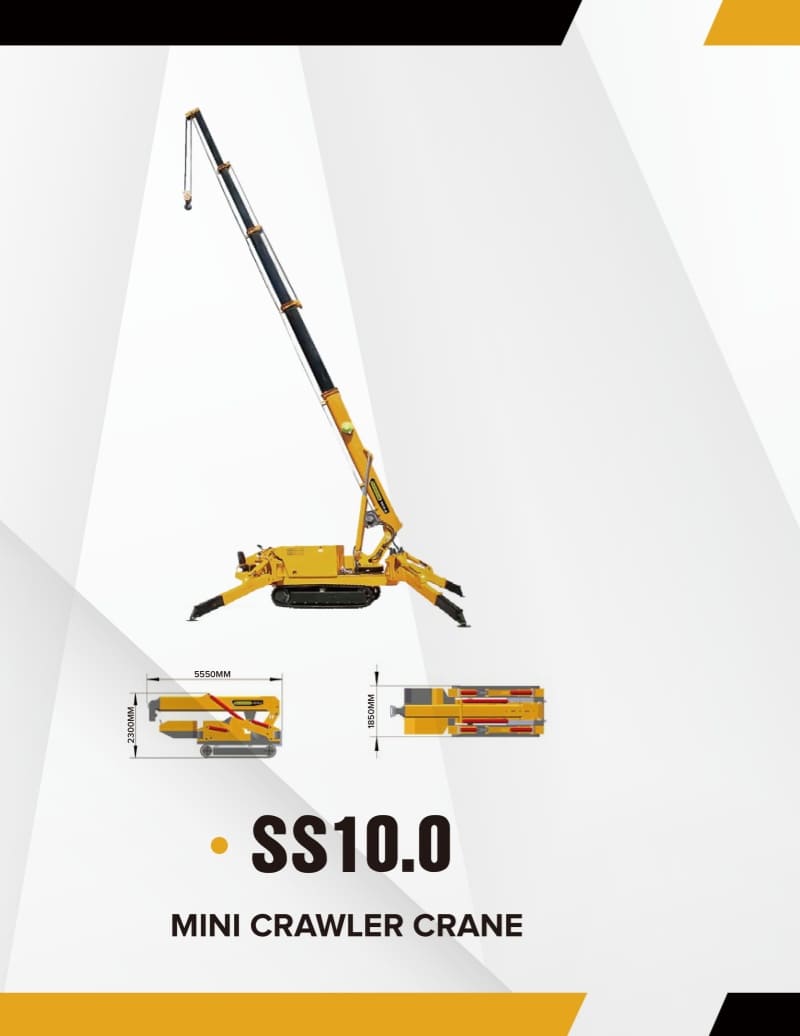

SS10.0
SS10.0

SS10.0
Capacity: 10T
Max ground lifting height: 20M
Max underground lifting height: 80M
Max working radius: 19.2M
Dimension: 5550mmX1850mmX2300mm
Weight: 9300KG
Get Quotation
More parameters

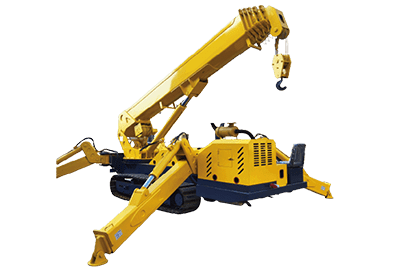

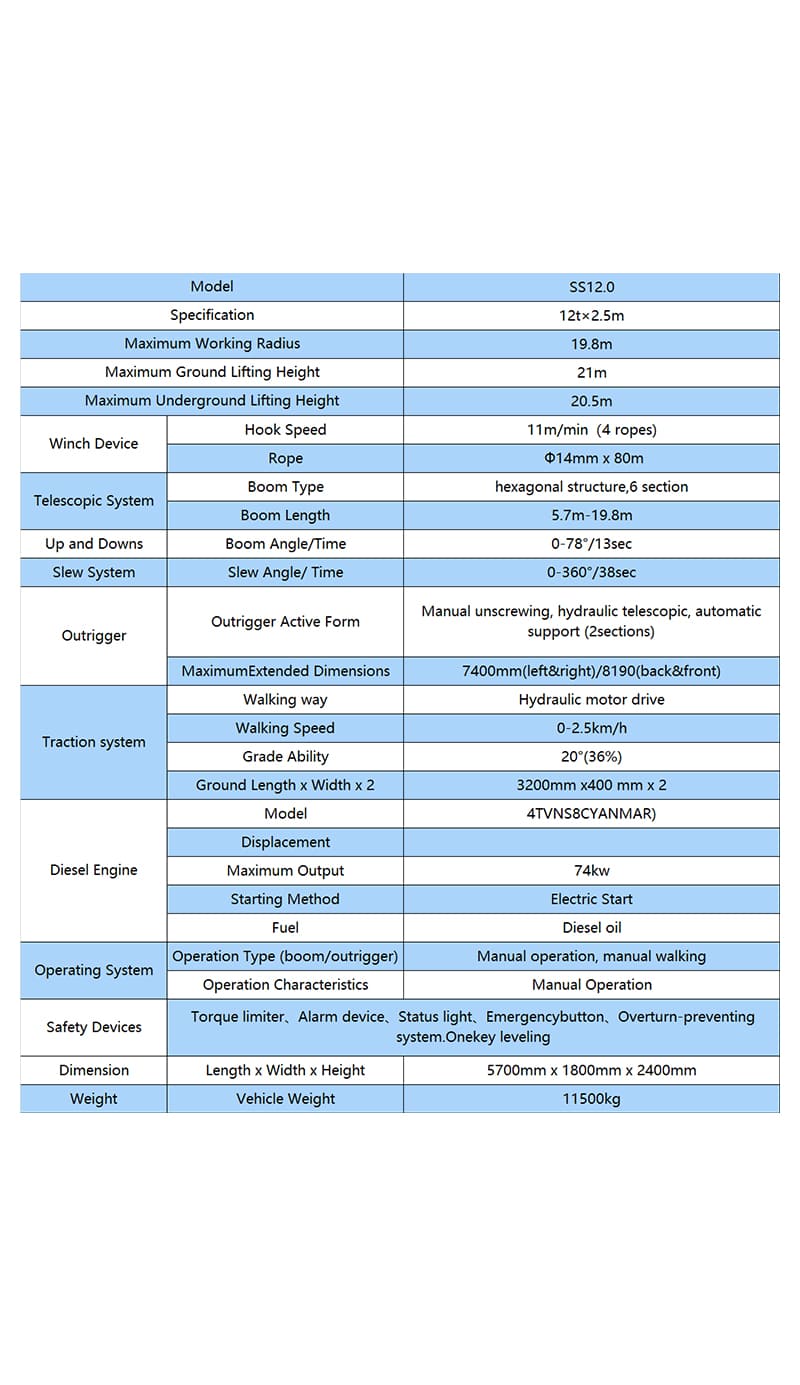

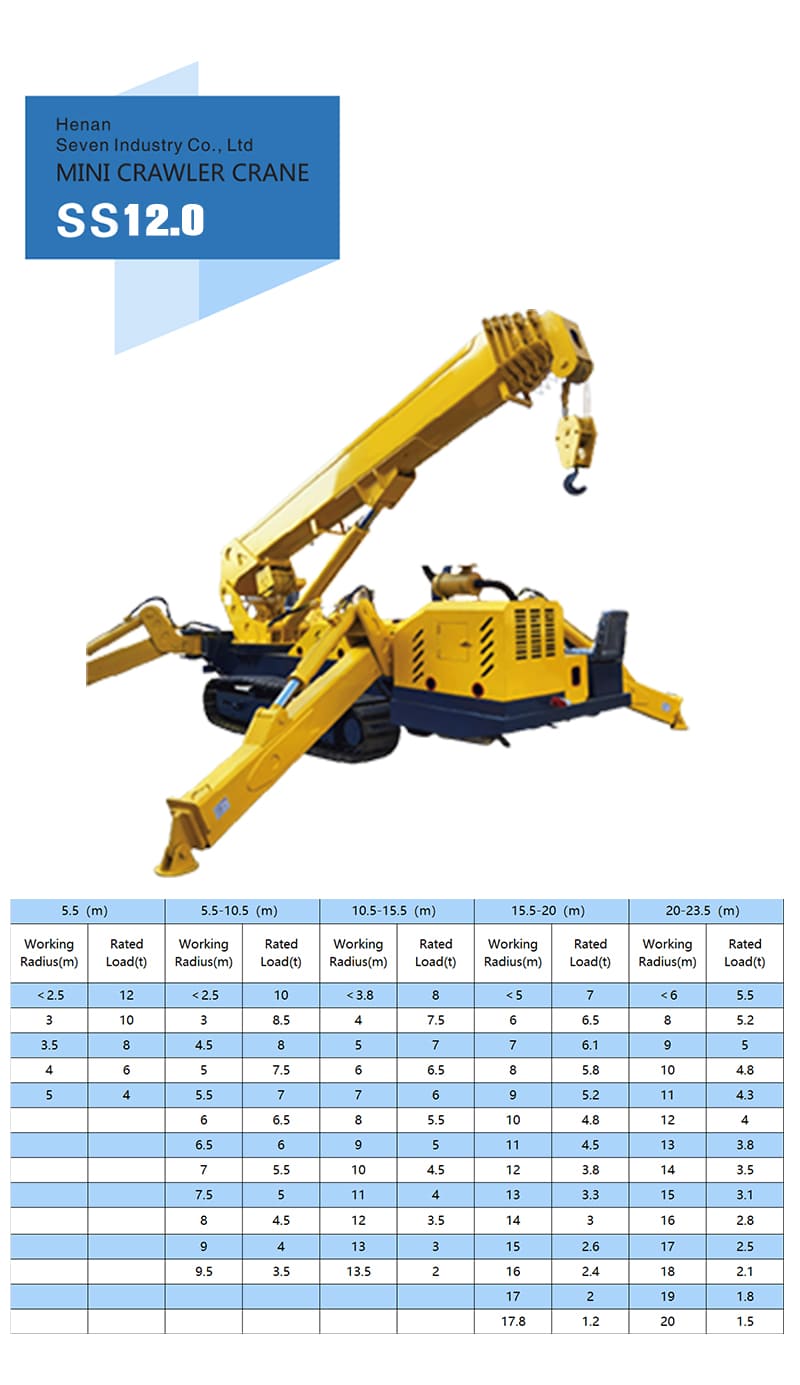

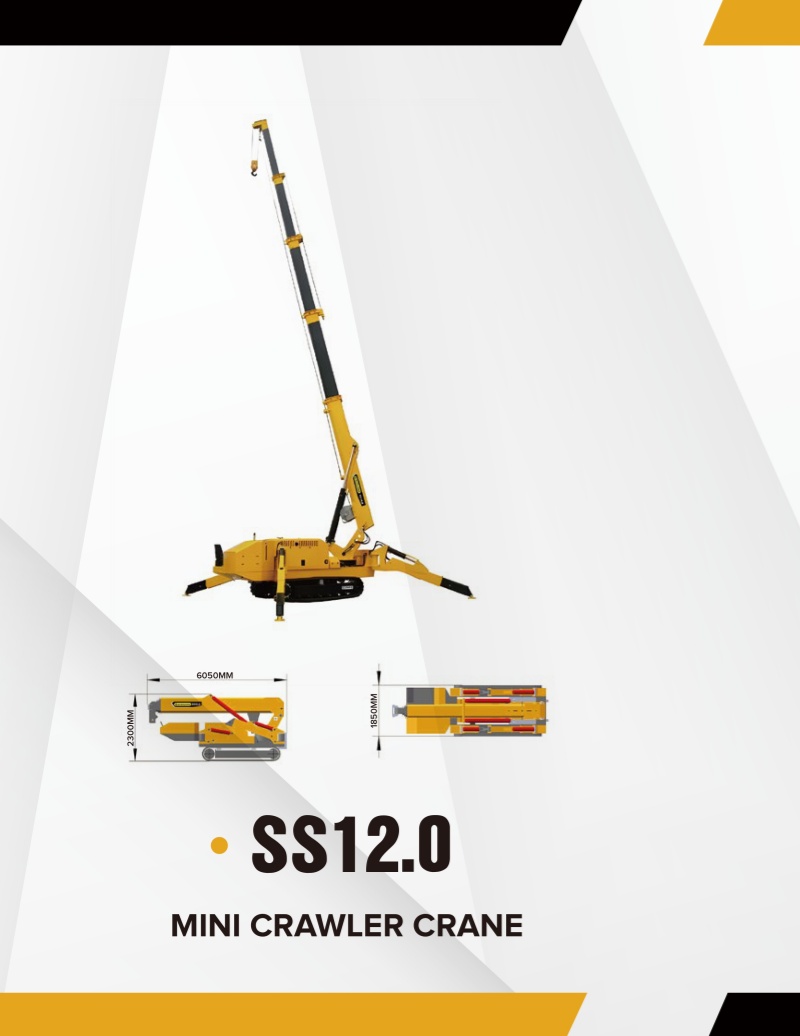

SS12.0
SS12.0

SS12.0
Capacity: 12T
Max ground lifting height: 22M
Max underground lifting height: 80M
Max working radius: 21.5M
Dimension: 6050mmX1850mmX2300mm
Weight: 11500KG
Get Quotation
More parameters

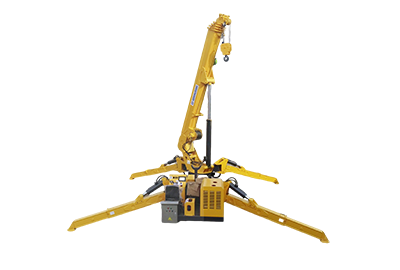

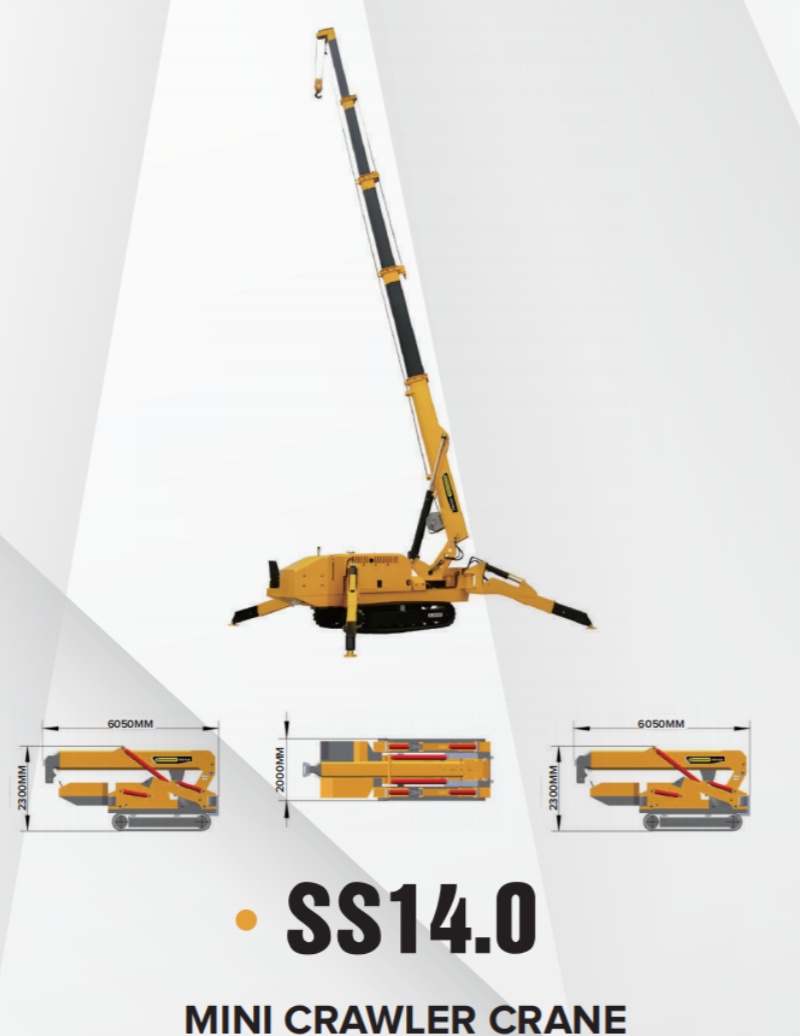

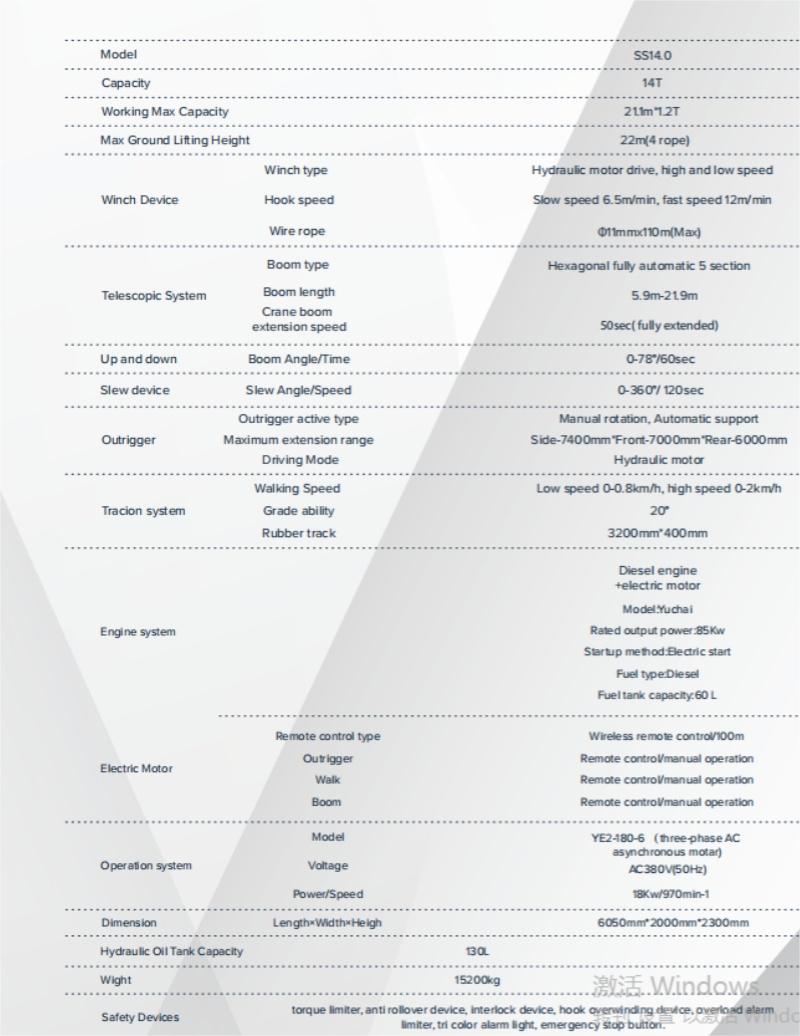

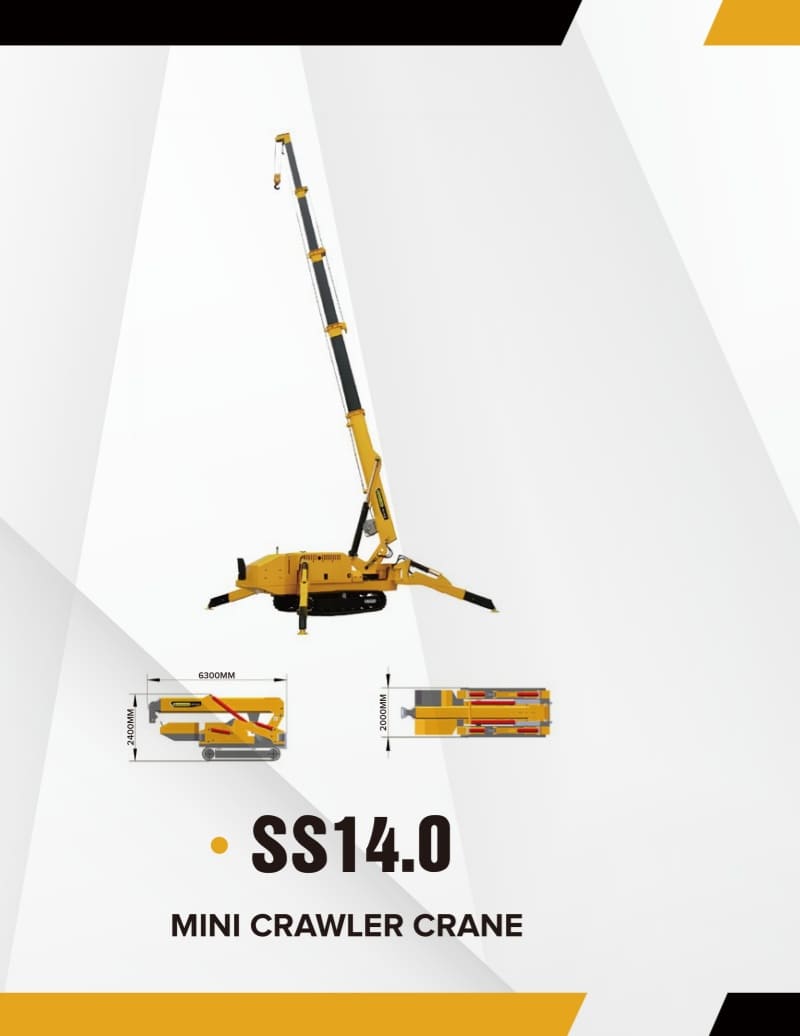

SS14.0
SS14.0

SS14.0
Capacity: 14T
Max ground lifting height: 22M
Max underground lifting height: 80M
Max working radius: 21M
Dimension: 6300mmX2000mmX2400mm
Weight: 14500KG
Get Quotation
More parameters

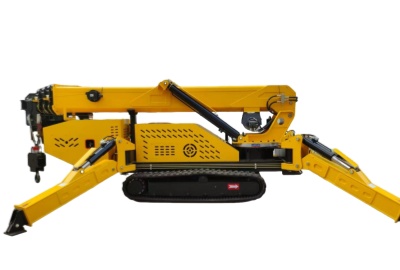

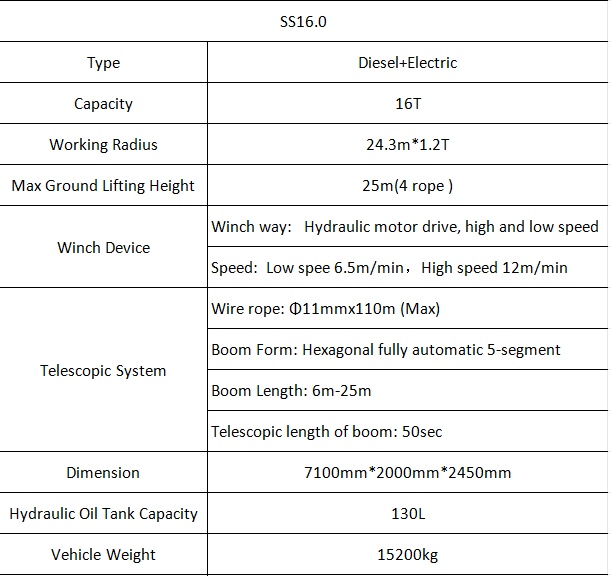

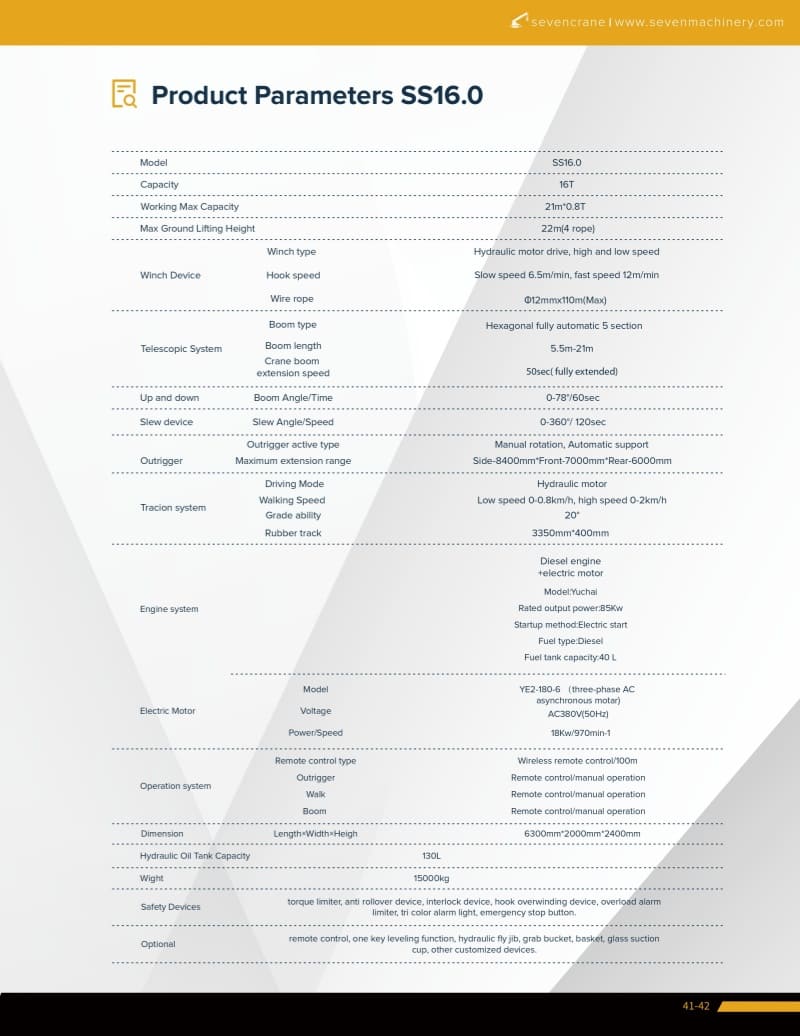

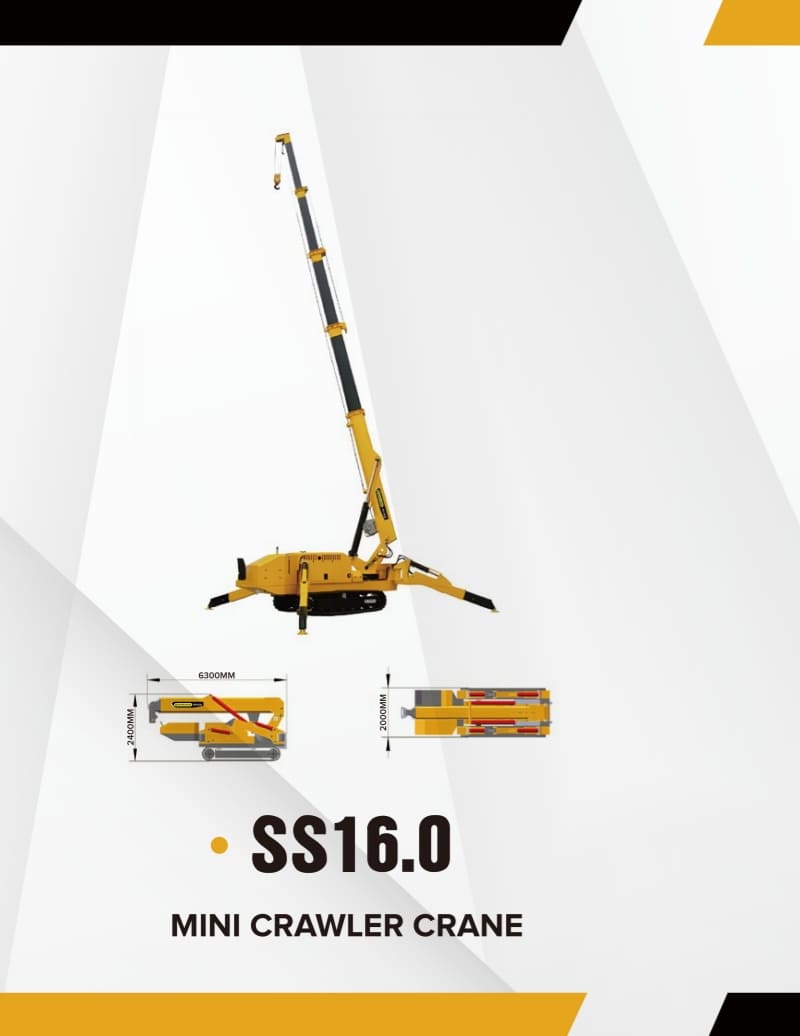

SS16.0
SS16.0

SS16.0
Capacity: 16T
Max ground lifting height: 22M
Max underground lifting height: 110M
Max working radius: 21M
Dimension: 6300mmX2000mmX2400mm
Weight: 15000KG
Get Quotation
More parameters
UPGRADE YOUR DEVICE NOT JUST PARTS

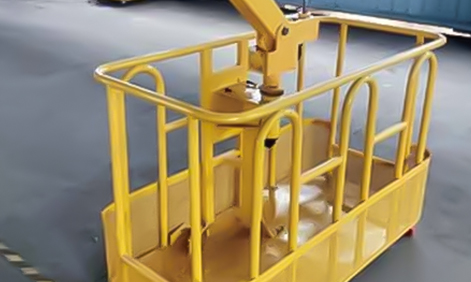

Basket
1 Basket
It is a suspended platform that allows workers to access and work at elevated heights safely and efficiently.

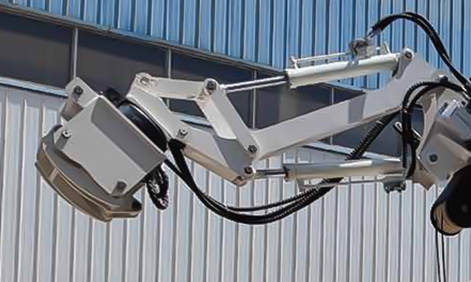

Grab
2 Grab
Grabs are available in different sizes and configurations to suit various materials and job requirements.

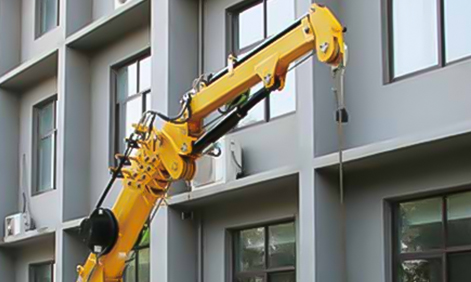

Hydraulic Fly Jib
3 Hydraulic Fly Jib
Hydraulic fly jib expands the capabilities and versatility of spider cranes, enabling them to complete a wider range of lifting tasks with increased reach and lifting capacity.

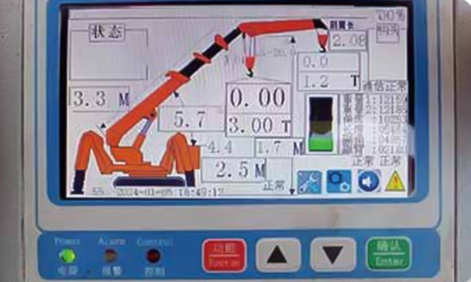

Torque Display
4 Torque Display
It is a display unit that shows the torque levels being exerted by the crane during lifting operations.

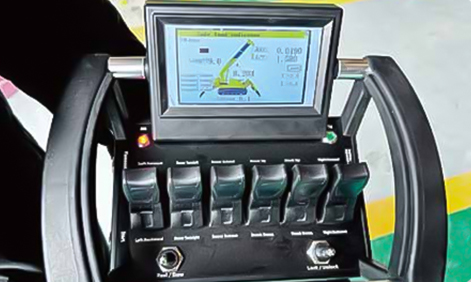

Remote with Display
5 Remote with Display
Remote with display is a remote control device equipped with a built-in display that allows operators to remotely operate and monitor spider cranes from a safe distance.

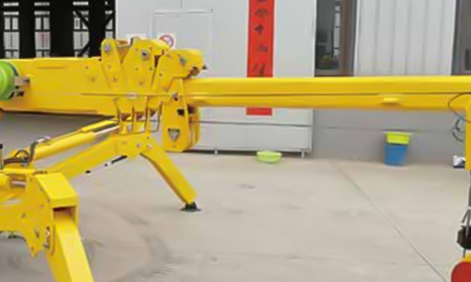

Fly Jib
6 Fly Jib
It is a supplementary boom that can be attached to the main boom of the spider crane, allowing for increased horizontal outreach and lifting capacity.
View Our Brochure
Want to get more detailed information about our equipment? Please view our E-catalogue here.
MOMENTS OF SPIDER CRANE
SEVENCRANE spider crane is characterized by compact structure, small size and light weight. It can be used in small spaces, underground spaces, top of buildings, and uneven ground. E.g: Glazing Works, Curtain Wall Installation, Restricted Access, Rooftop Work, Steel Erection & Building Construction, Residential Construction, Plant, Factory & Automotive, Limited Access, Facility Equipment Installation, Power Stations, Tunnel-Underground, Railway, Marine Construction, Ship Building and On Board Ships.

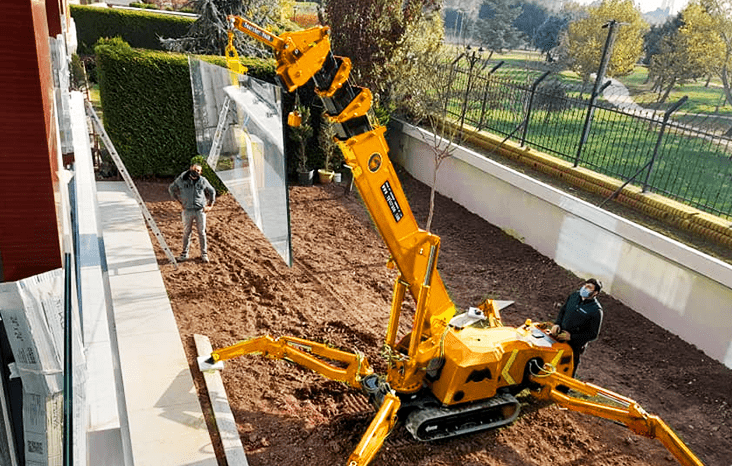

Glazing Works
Glazing Works
By equipping the spider crane with vacuum glass suction, the spider crane can install glass on the indoor, small space, and uneven ground. There are various types of glass suctions, which can be applied to glass of different sizes and weights. Spider cranes equipped with vacuum glass suctions are widely used in Europe.

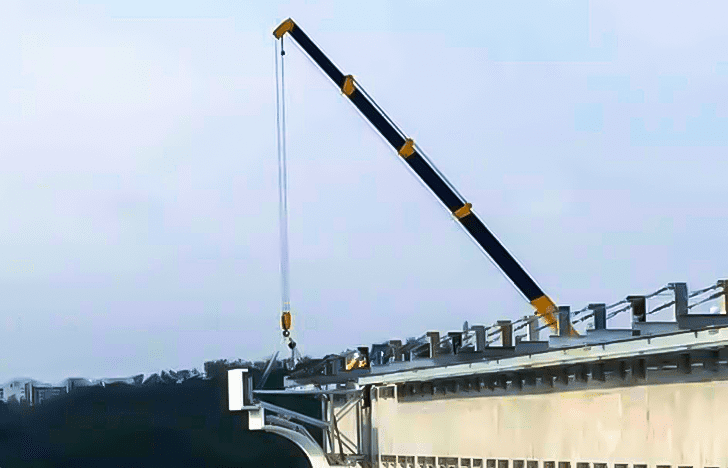

Curtain Wall Installation
Curtain Wall Installation
The spider crane can be sent to the top of a high-rise building by an elevator, and then used for the installation of glass frames and other external walls by lifting the goods from above. This is one of the most popular applications of spider cranes, which can avoid the use of expensive tower cranes to shorten the construction period and reduce costs.

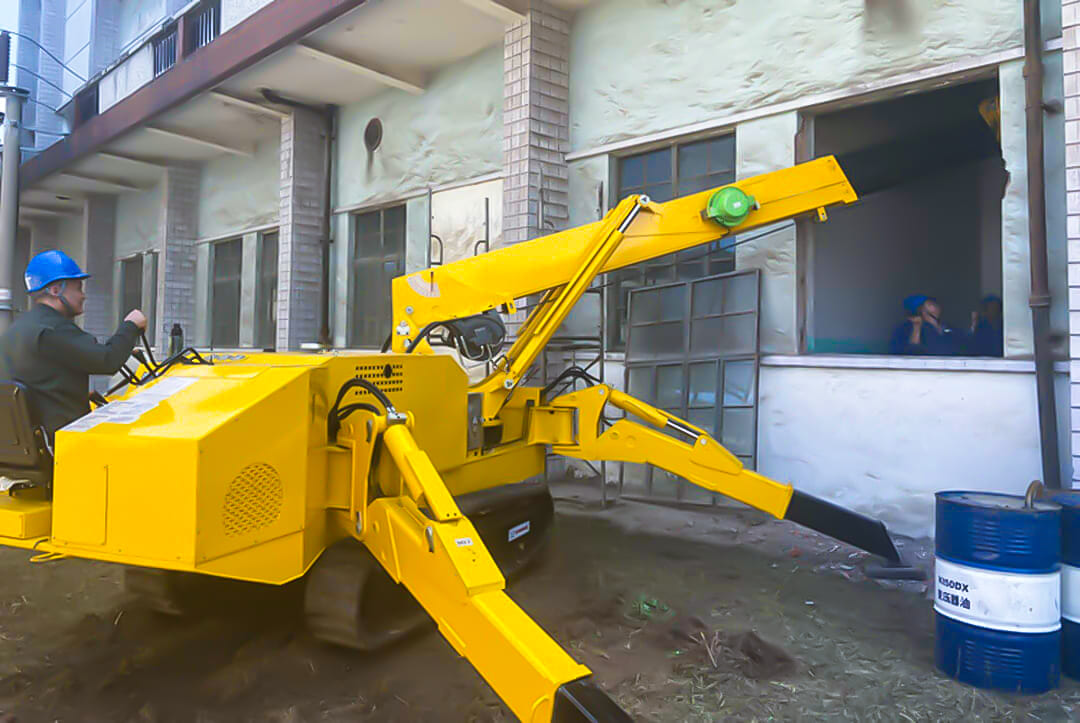

Restricted Access
Restricted Access
Due to its small size and compact structure, even in narrow places or spaces with obstacles, our spider crane can adjust its position through four outriggers to avoid contact with obstacles, and realize safe operation. In addition, our spider crane has the advantage of a small turning radius, which is most suitable for small spaces where large cranes cannot enter.

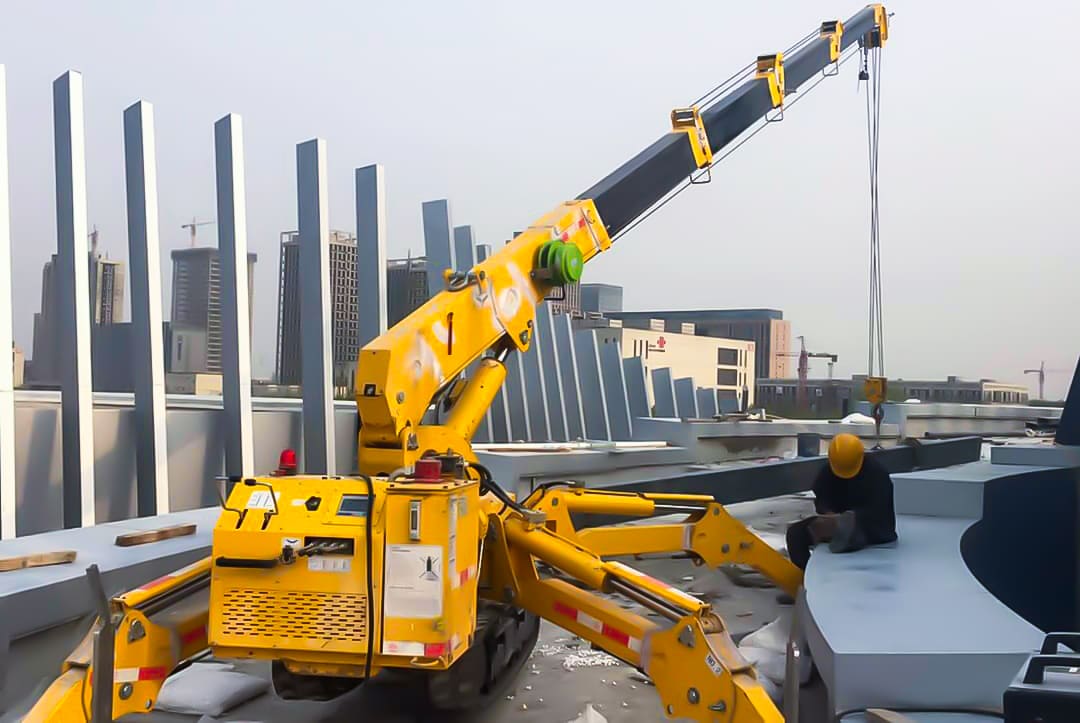

Rooftop Work
Rooftop Work
The spider crane can be easily lifted to the roof by a tower crane or elevator, and placed on the roof to lift materials from the ground. Spider cranes can replace part of the work of tower cranes, shortening the construction period and reducing costs. More and more construction companies have begun to purchase spider cranes as their powerful tools.

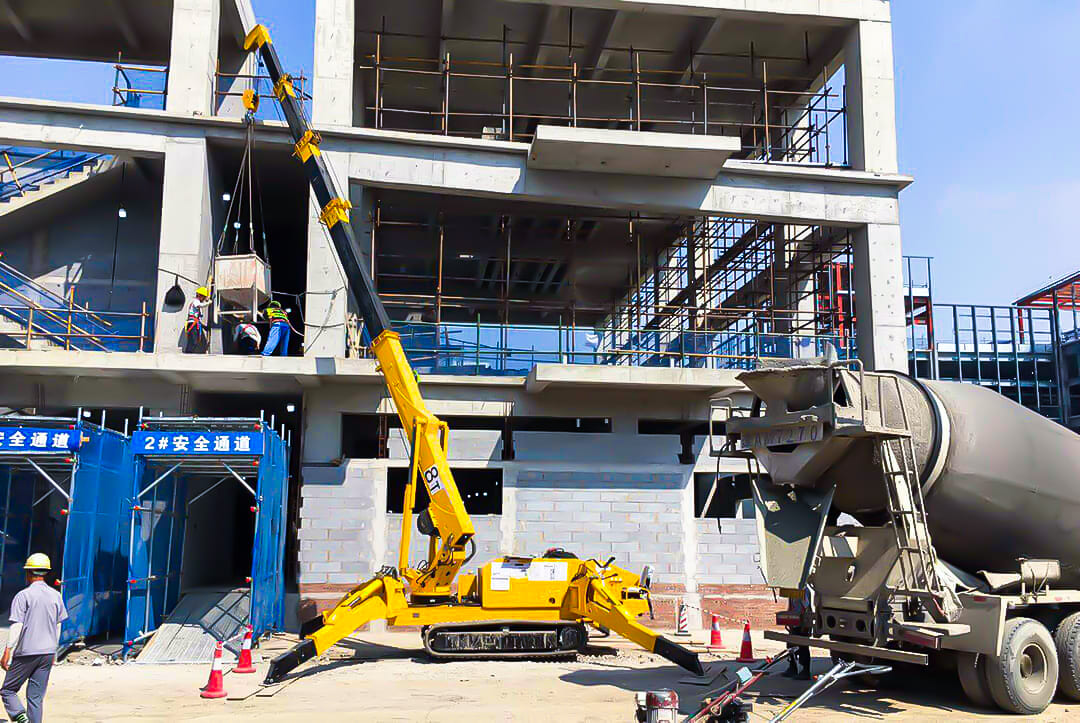

Steel Erection & Building Construction
Steel Erection & Building Construction
Spider cranes are also widely used in steel structure engineering projects. Spider cranes can be used for various indoor and outdoor steel structures, roof steel frame installation projects and steel tower installation projects.

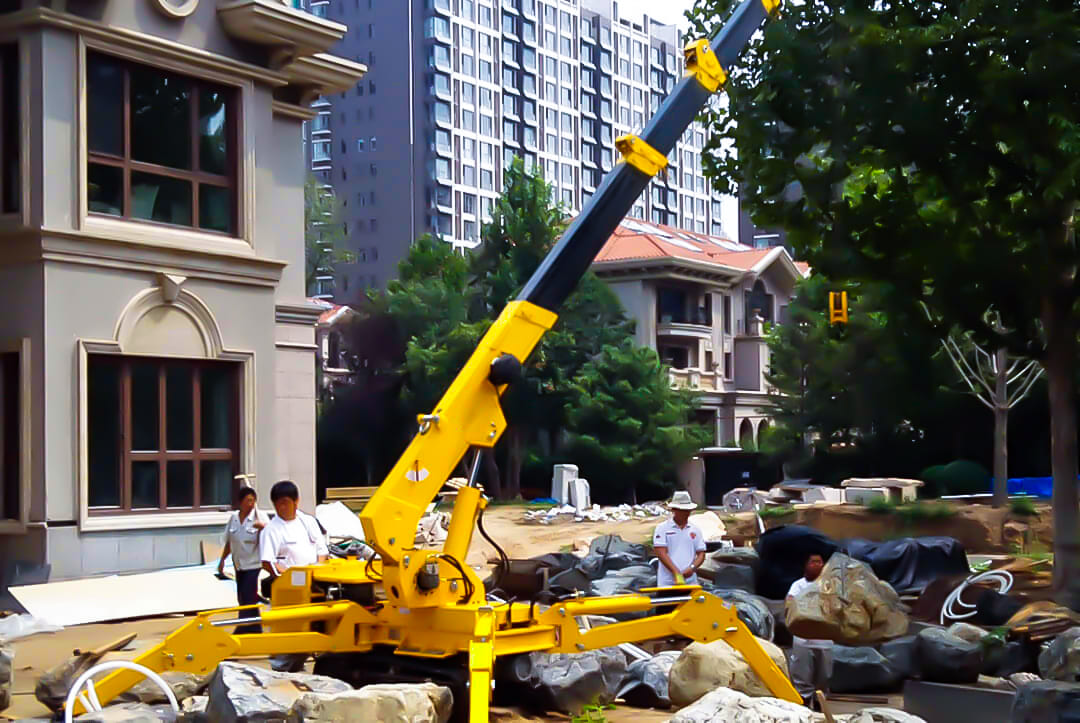

Residential Construction
Residential Construction
Spider cranes can lift residential materials inside and outside the residence, which cannot be done by large cranes such as truck cranes and crawler cranes.

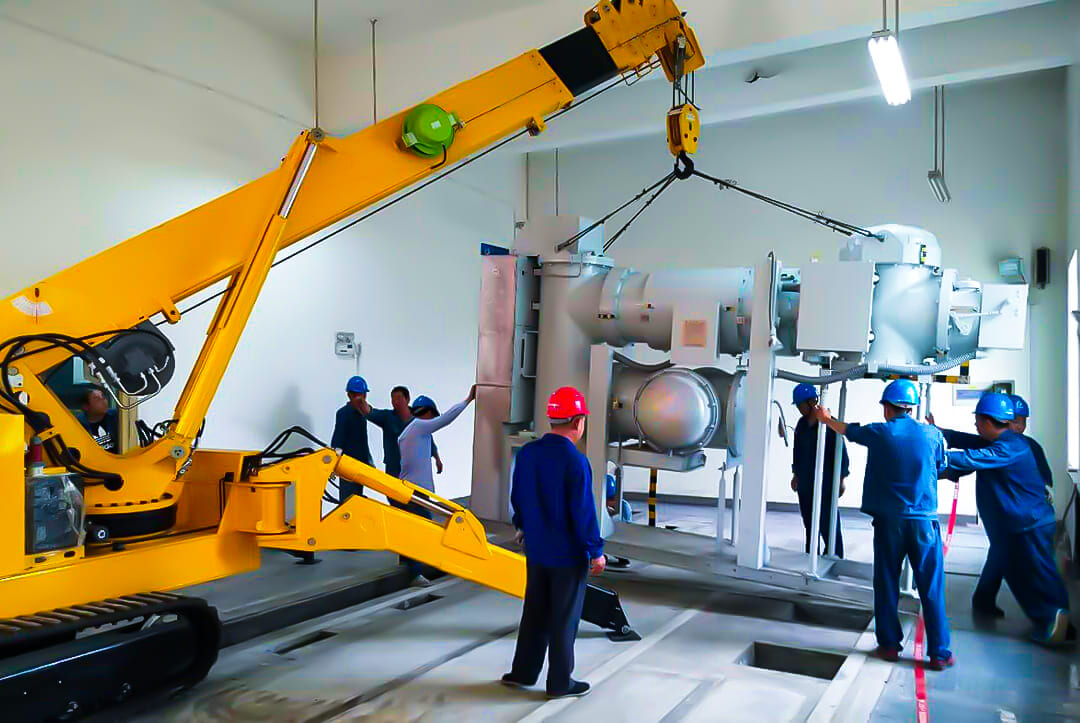

Plant, Factory & Automotive
Plant, Factory & Automotive
Spider cranes can be used for equipment maintenance, line replacement and material lifting in places where there is no bridge crane or insufficient space, such as automobile factories, chemical plants, and various machinery factories.

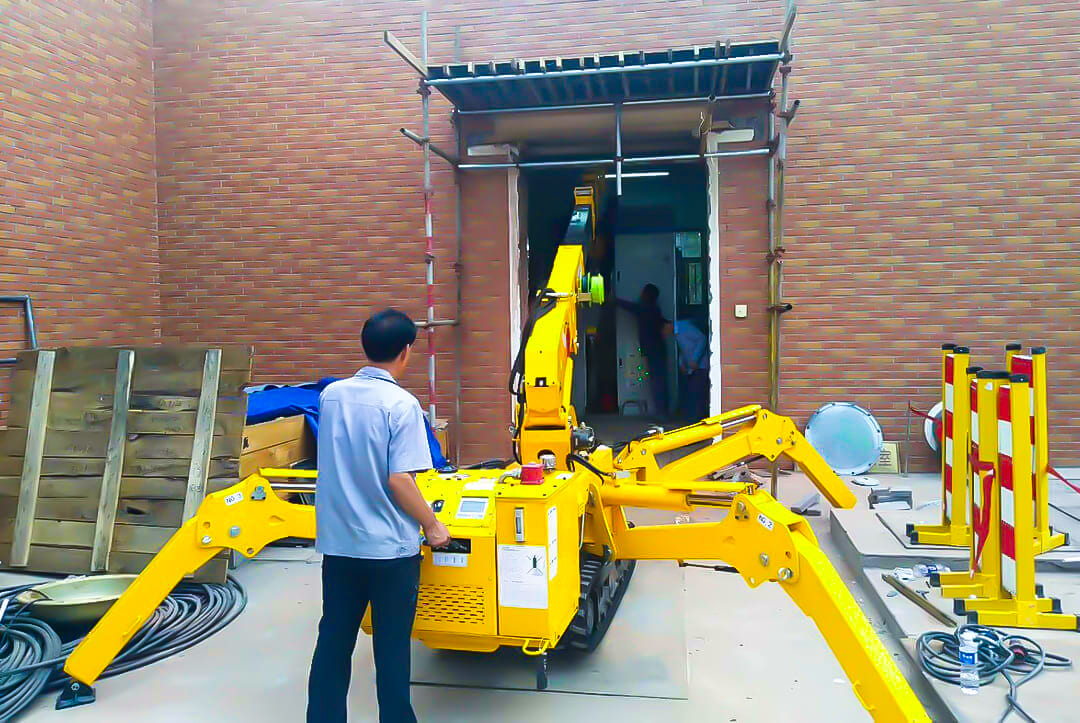

Limited Access
Limited Access
Spider cranes are also known as mini crawler cranes. In some blocked roads or restricted spaces, mini crawler cranes can perfectly replace large cranes and reduce work costs.

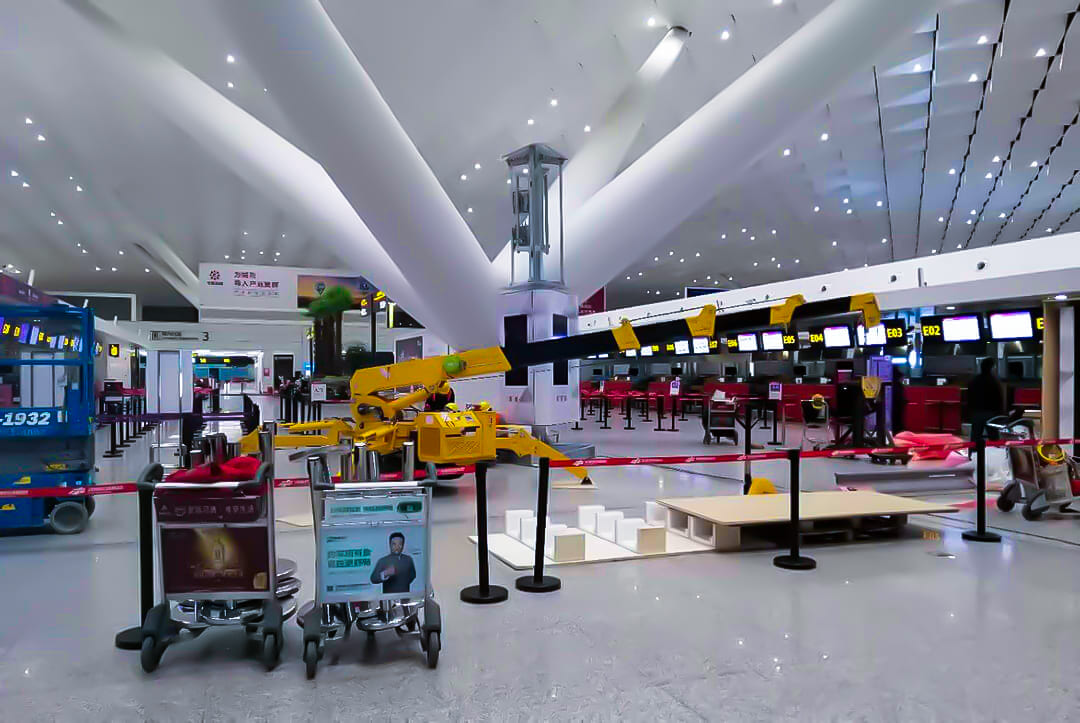

Facility Equipment Installation
Facility Equipment Installation
SEVENCRANE spider crane has excellent lifting height and convenience, and is often used in the installation of billboards and indicator signs in shopping malls, stadiums, theaters and other commercial buildings.

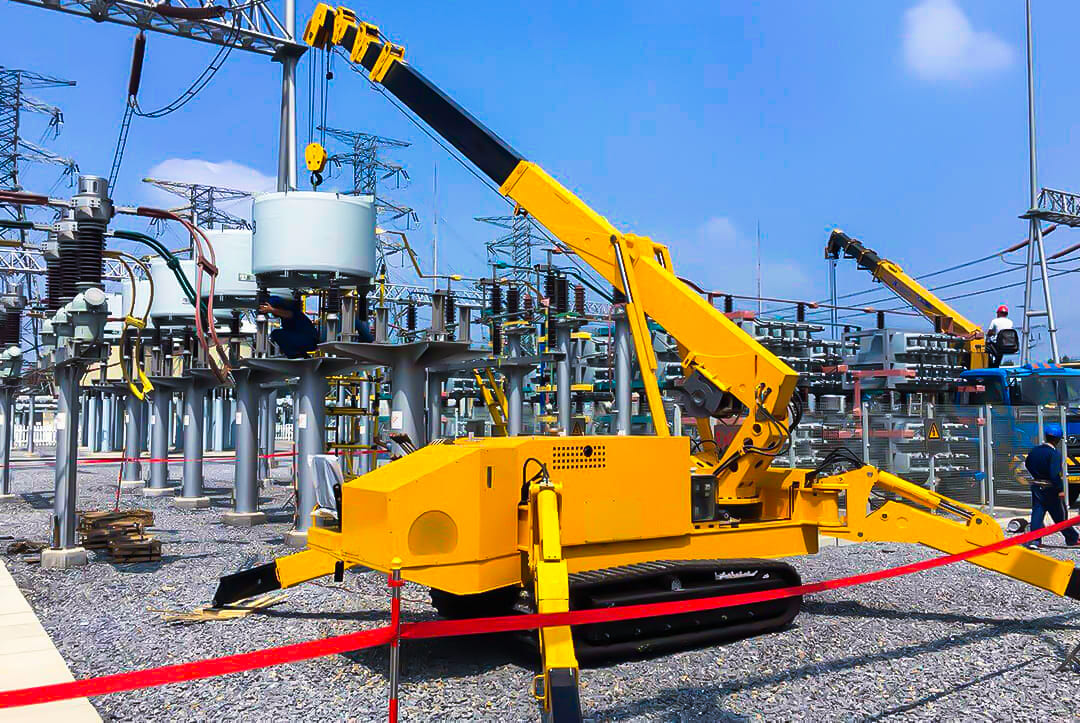

Power Stations
Power Stations
In places such as power stations and substations where cables and transformers are scattered, the working space is small and the risk factor is high. Safe lifting operations must be carried out in a limited space. Spider cranes play an important role in this.

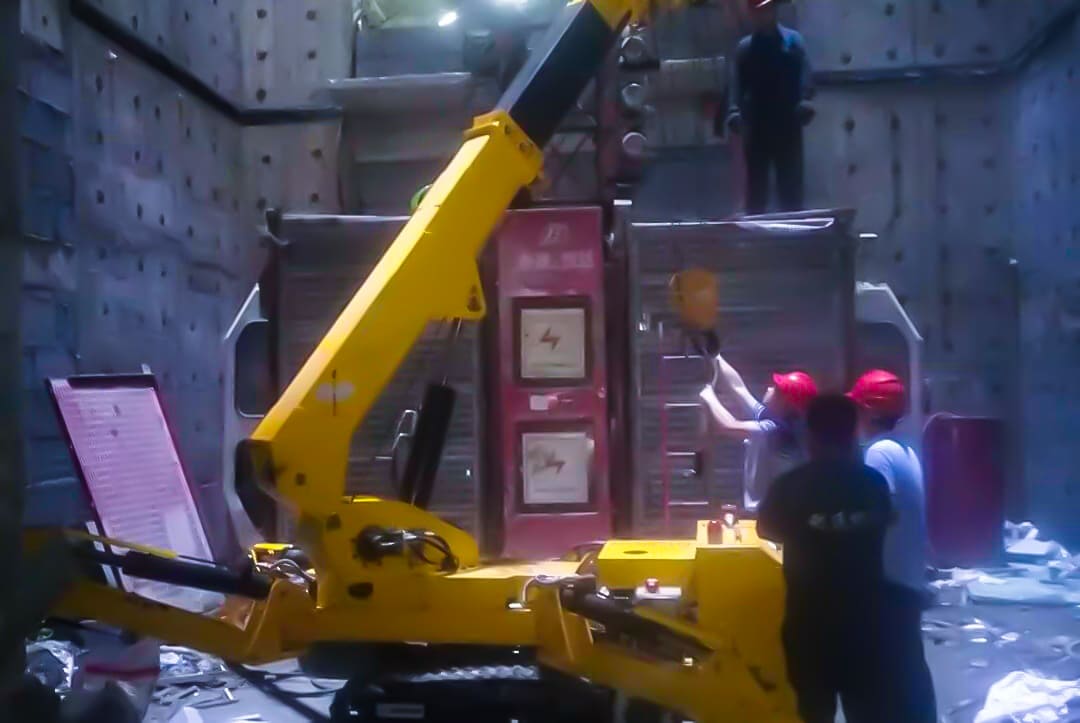

Tunnel/Underground
Tunnel/Underground
Spider cranes can be operated in tunnels with limited space such as subways, underground passages, and underground facilities.

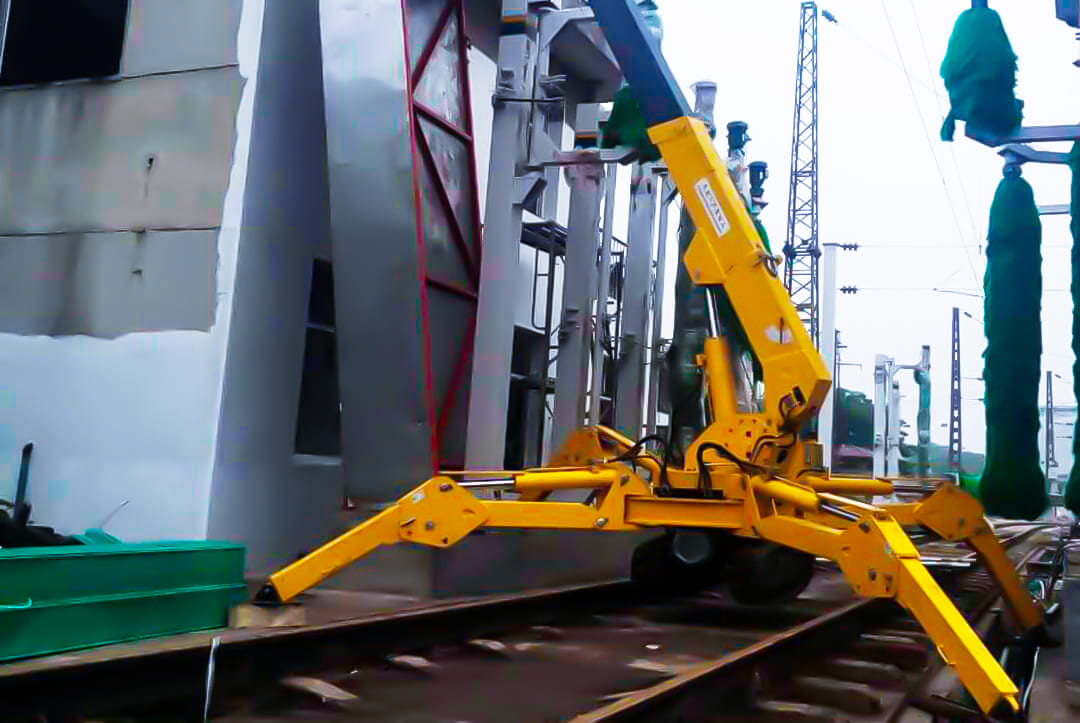

Railway
Railway
Spider cranes can be used for materials lifting and equipment or locomotive maintenance on railways or railway stations.

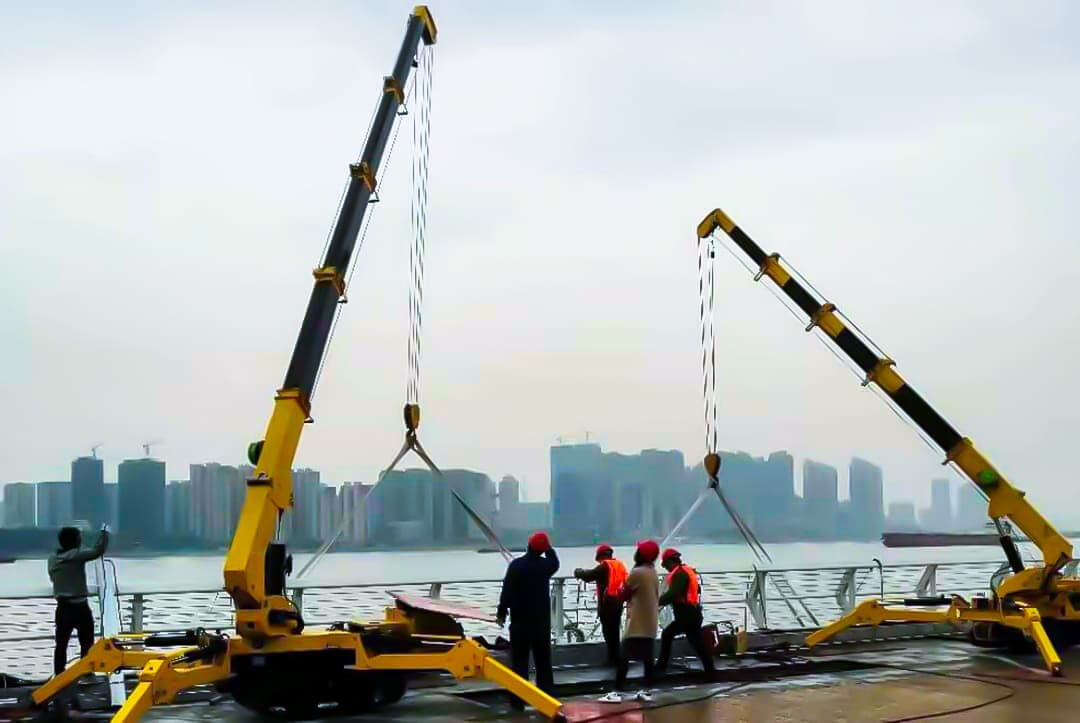

Marine Construction, Ship Building And On Board Ships
Marine Construction, Ship Building And On Board Ships
Small and light spider cranes play an active role in the lifting work of shipyards and ships.
Unlocking SUCCESSFUL CASES
SEVENCRANE has established a broad market around the world, and its spider crane series products have been widely praised in Europe and America. View more cases and contact us today to customize your crane solution.
SS3.0 & SS5.0 Guatemala Spider Crane
SS3.0 & SS5.0 Guatemala Spider Crane
Get Quotation in 6 Hours
SS3.0 Ireland Spider Crane
SS3.0 Ireland Spider Crane
Get Quotation in 6 Hours
SS5.0 & SS8.0 Ecuador Spider Crane
SS5.0 & SS8.0 Ecuador Spider Crane
Get Quotation in 6 Hours
SS8.0 Brazil Spider Crane
SS8.0 Brazil Spider Crane
Get Quotation in 6 Hours
SS5.0 Australia Spider Crane
SS5.0 Australia Spider Crane
Get Quotation in 6 Hours
SS3.0 Canada Spider Crane
SS3.0 Canada Spider Crane
Get Quotation in 6 Hours
SS3.0 Russia Spider Crane
SS3.0 Russia Spider Crane
Get Quotation in 6 Hours
 5 Sets UAE Spider Cranes
5 Sets UAE Spider Cranes
Get Quotation in 6 Hours

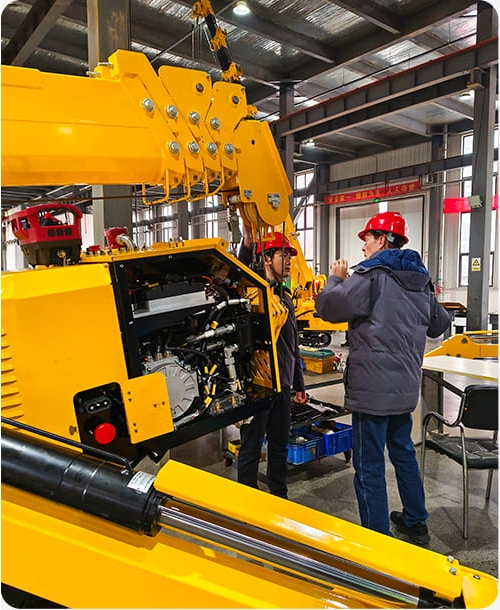

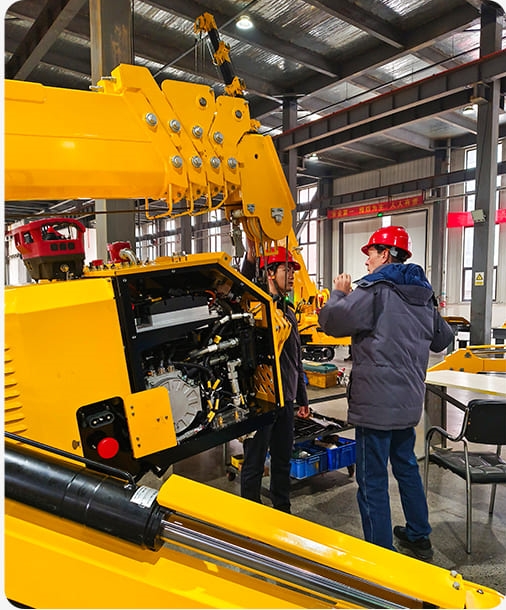

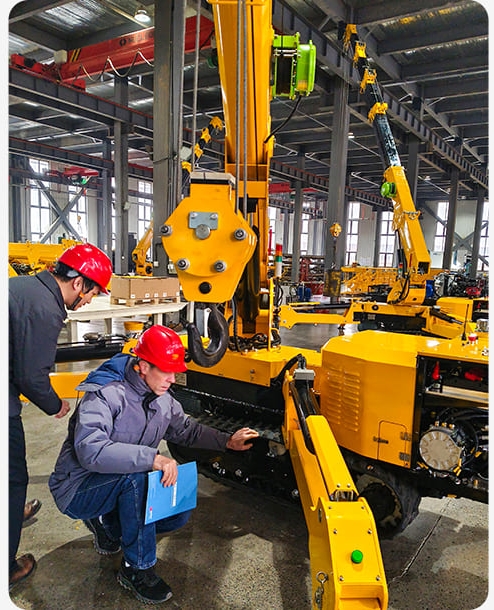

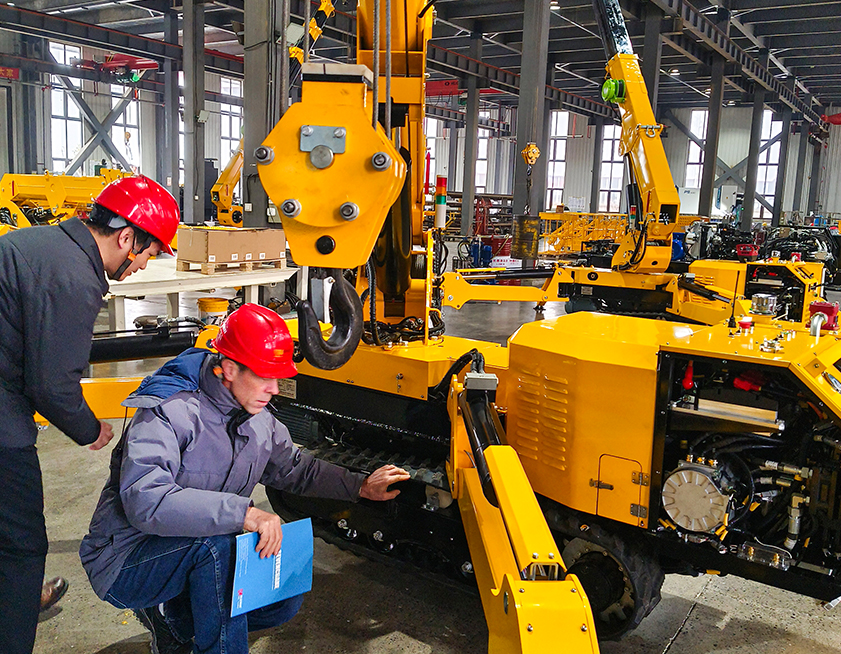

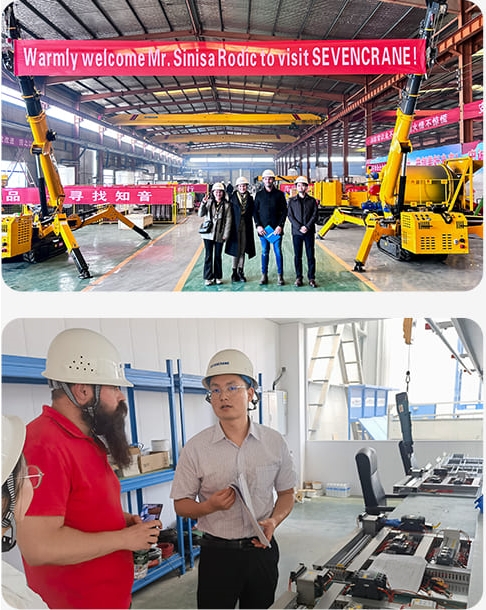

WELCOME TO SPIDER CRANE FACTORY
As you step into our factory, you'll witness a commitment to quality at every stage of production. From the sourcing of top-grade materials to the utilization of advanced manufacturing technology, we spare no effort to provide spider cranes that excel in performance and durability.
HAS ALWAYS ENDEAVORED FOR ATTAINING IMPECCABLE QUALITYy
FREQUENTLY ASKED QUESTIONS
1 Are you a manufacturing factory or a trading company?

HENAN SEVEN INDUSTRY CO., LTD is a professional spider crane production factory. We welcome customers from all over the world to visit our factory at any time.

2 Do you provide OEM and ODM services?

We provide OEM and ODM services. We understand that each customer’s needs are unique, so we provide our customers with customized solutions.

3 What specifications are available?

At present, we mainly sell 1t, 3t, 5t, 8t, 10t, and 12t. If you have special needs, we accept customization.

4 What brand of engine does the spider crane use?

Usually we use diesel engines and gasoline engines, mainly including Japanese brands Yanmar, Honda, and Chinese brands Changchai, Yuchai, and Yunnei.

5 Are there operating instructions and maintenance manuals?

We provide detailed operating instructions and maintenance manuals for each product.

6 How long is the production cycle?

The production cycle for each order is approximately 20-30 working days.

7 What kind of after-sales service is provided?

Complete user manual; 24-hour technical guidance; parts service shipped within 7 days; when your machine has problems, we provide video call maintenance guidance; if necessary, after negotiation between the two parties, after-sales engineers can go to the project location to guide installation.

8 What kind of quality guarantee is provided?

Our products have passed ISO:9001 quality certification and CE certification; the production process is strictly controlled.

9 What is the payment method?

We support T/T, L/C, MoneyGram, credit card, PayPal, Western Union, cash and other payment methods. We will have certain preferential policies for long-term cooperative customers.

10 How long is the warranty period of the machine?

1 year

11 What should I do if the equipment breaks down?

If you are worried about this, it is recommended that you use Yanmar engines. This is a very well-known engine brand and it is easier to find accessories or wearing parts in your local market. Regarding other accessories, if you are worried that they are not easy to purchase in the local market, we will respond promptly and the corresponding accessories will be dispatched to you within 7 days. And when we deliver the goods, we will also give you a set of spare spare parts for free. This greatly reduces the time delay problems caused in this area.
We will provide video call maintenance guidance within 24 hours; if necessary, after negotiation between the two parties, after-sales engineers can go to the project location to guide repairs.
