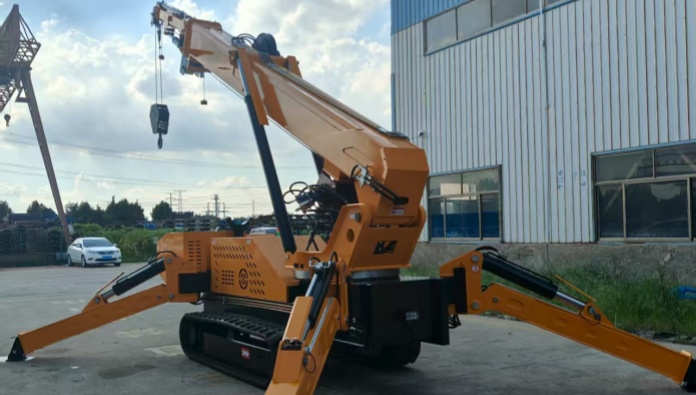

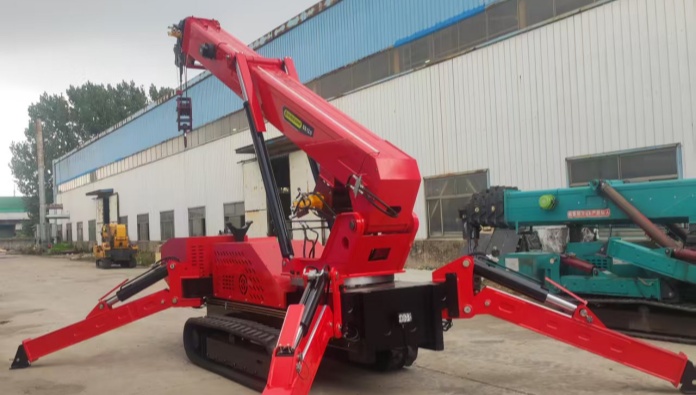

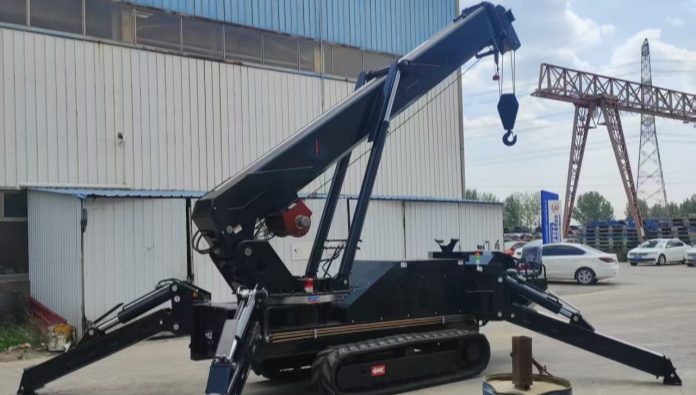

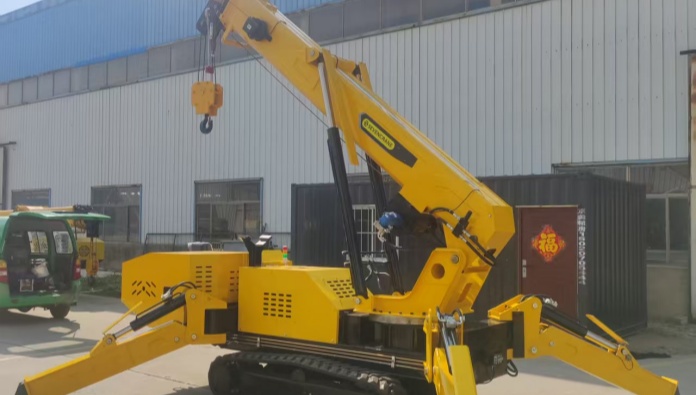

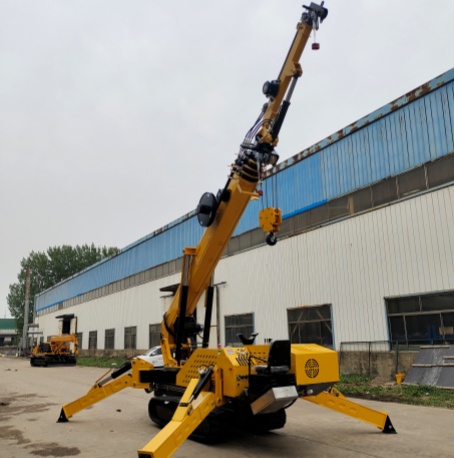

SPIDER CRANE-SS16.0-Henan Seven Industry Co., Ltd

SPIDER CRANE-SS16.0

Sig'imi:	16T
Maksimal ko'tarish balandligi:	22 m
Maksimal ko'tarish balandligi (yer osti):	110m
Maksimal ish radiusi:	21m x0.8T
Hajmi:	6300mm x2000mm x 2400mm
Vazni:	15000kg

Narxni oling Elektron pochta xabarini yuborish Hozir so'rov yuboring WhatsApp

Mahsulot bilan tanishtirish

The 16-ton spider crane is a high-capacity, heavy-duty lifting solution engineered for complex and demanding projects where both strength and precision are required. With a maximum lifting capacity of 16 tons, it is widely used in large-scale construction, steel structure installation, bridge maintenance, heavy equipment positioning, and industrial plant operations.

Despite its powerful lifting capability, the 16-ton spider crane maintains the signature compact design of spider cranes. This allows it to access confined or hard-to-reach areas where traditional large cranes cannot operate efficiently. Its multi-position outriggers can be adjusted to suit different site conditions, ensuring excellent stability even on uneven terrain or restricted spaces such as urban construction sites and indoor facilities.

SS16.0 Specifications

Model		SS16.0
Texnik xususiyatlar		16Tx 22m
Maksimal ish radiusi		21m x0.8T
Maksimal yer ko'tarish balandligi		22 m
Maksimal yer osti ko'tarish balandligi		110m
Vinç qurilmasi	Kanca tezligi	Sekin tezlik 6,5 m/min, tez tezlik 12 m/min
Vinç qurilmasi	Arqon	12mm x 110m
Teleskopik tizim	Boom turi	Olti burchakli to'liq avtomatik 5 qismli
Teleskopik tizim	Boom uzunligi	5.5m-21m
Yuqoriga va pastga	Boom burchagi/vaqti	0° ~78。/60sec
Slew tizimi	Burilish burchagi/vaqti	0° 〜360° (Continuous )/120sec
Outrigger	Outrigger faol shakli	Qo'lda aylantirish, avtomatik qo'llab-quvvatlash
Outrigger	Maksimal kengaytirilgan o'lchamlar	8400mm x 7000mm×6000mm
Tortish tizimi	Piyoda yo'li	Shlangi motor bilan boshqariladigan
	Yurish tezligi	Past tezlik 0-0.8 km/soat, yuqori tezlik 0-2 km/soat
	Baholash qobiliyati	20°
	Ground Length x Width x 2	3350mm x 400 mm
	Yer bosimi	95 kPa (0.97 kgf/cm²)
Dizel dvigatel	Model	Yuchay
	Ko'chish	-L
	Maksimal chiqish	85Kw
	Boshlash usuli	Elektr ishga tushirish
	Bak hajmi	40L
Xavfsizlik moslamalari	Moment cheklovchisi, ag'darilishga qarshi qurilma, blokirovka moslamasi, ilgakni ortiqcha o'rash moslamasi, ortiqcha yuklanish signalizatsiyasini cheklovchi, uch rangli signal chiroqchasi, favqulodda to'xtatish tugmasi.
Tizim kuchlanishi	AC380V(50Hz)+Support customization
Hajmi	Uzunlik x Kenglik x Balandlik	6300 mm x 2000 mm x 2400 mm

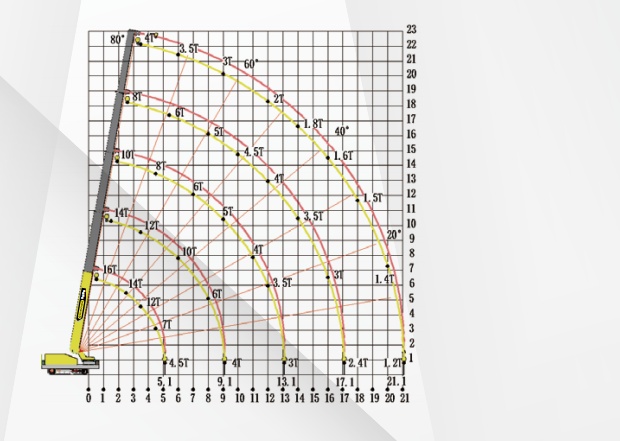

Olib tashlash stoli

Lifting Table at Maximum Extended Outrigger

≤5.9m boom		≤9.9m boom		≤13.9m boom		≤17.9m boom		≤21.9m boom
Working Radius(m)	Nominal yuk (t)	Working Radius(m)	Nominal yuk (t)	Working Radius(m)	Nominal yuk (t)	Working Radius(m)	Nominal yuk (t)	Working Radius(m)	Nominal yuk (t)
0.5	16	1.5	14	2.0	8.0	2.5	8.0	3.5	4.0
2.5	14	3.5	12	4.5	7.0	5.5	6.0	6.0	3.5
3.5	12	6.0	10	6.0	6.0	8.0	5.0	9.0	2.0
4.5	7.0	8.0	6.0	7.0	5.0	10	4.5	12	2.0
5.1	4.5	9.1	4.0	9.0	4.0	12	4.0	14	1.8
				11	3.5	14	3.5	16	1.6
				13.1	3.0	16	3.0	18	1.5
						17.1	2.4	20	1.4
								21.1	1.2
