SPIDER CRANE-SS4.0-Henan Seven Industry Co., Ltd

SPIDER CRANE-SS4.0

Sig'imi:	4T
Maksimal ko'tarish balandligi:	14.5m
Maksimal ko'tarish balandligi (yer osti):	45 m
Maksimal ish radiusi:	13.5m x0.2T
Hajmi:	4100mm x 955mm x 1700mm
Vazni:	3000kg

Narxni oling Elektron pochta xabarini yuborish Hozir so'rov yuboring WhatsApp

Mahsulot bilan tanishtirish

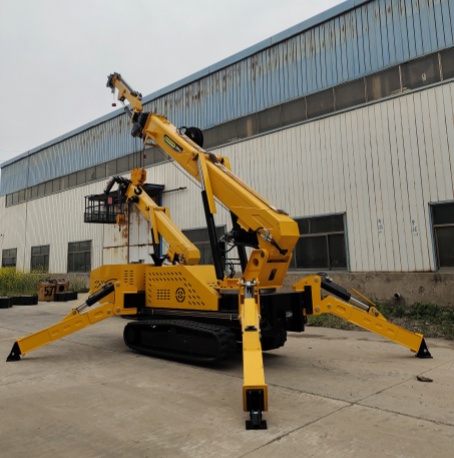

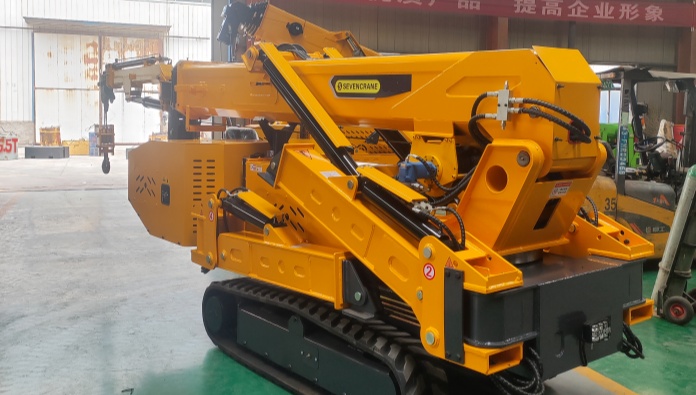

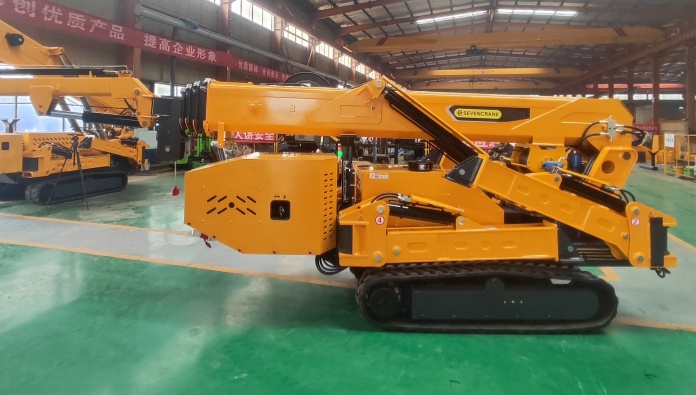

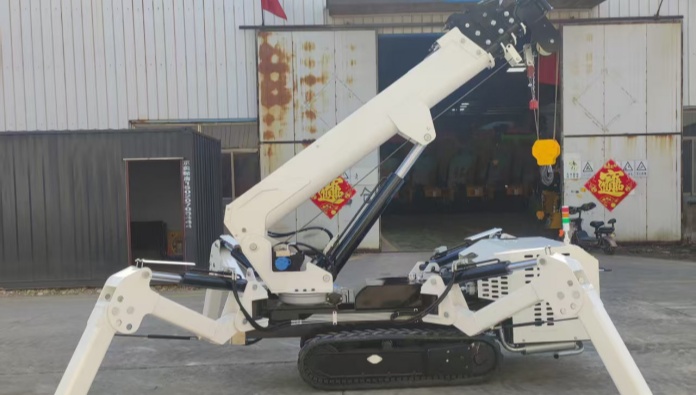

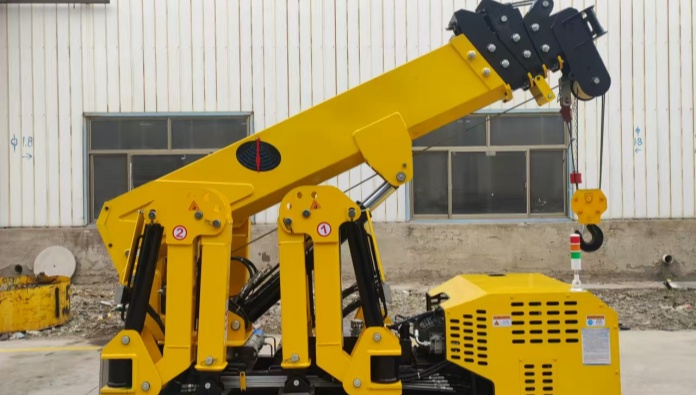

The 4-ton spider crane is a powerful yet compact lifting solution designed to handle demanding tasks in restricted or complex environments. With a maximum lifting capacity of 4 tons, it is widely used in construction, glass curtain wall installation, steel structure erection, equipment maintenance, and indoor lifting operations where space is limited and precision is essential.

One of the standout features of the 4-ton spider crane is its compact design combined with exceptional lifting performance. Equipped with multi-angle adjustable outriggers, it can maintain excellent stability on uneven or confined surfaces such as rooftops, basements, and narrow job sites. Its flexible outrigger configuration allows operators to work safely even when full extension is not possible.

SS4.0 Specifications

Model		SS4.0
Texnik xususiyatlar		4.0Tx 14.5m
Maksimal ish radiusi		13.5m x0.2T
Maksimal yer ko'tarish balandligi		14.5m
Maksimal yer osti ko'tarish balandligi		45 m
Vinç qurilmasi	Kanca tezligi	4,8 m/min
Vinç qurilmasi	Arqon	8mm x 45m
Teleskopik tizim	Boom turi	U type automatic 6 section
Teleskopik tizim	Boom uzunligi	3.0m-13.5m
Yuqoriga va pastga	Boom burchagi/vaqti	0° ~75。/18sec
Slew tizimi	Burilish burchagi/vaqti	0° 〜360° (Continuous )/45sec
Outrigger	Outrigger faol shakli	Qo'lda aylantirish, avtomatik qo'llab-quvvatlash
Outrigger	Maksimal kengaytirilgan o'lchamlar	4470 mm x 3940 mm
Tortish tizimi	Piyoda yo'li	Shlangi motor bilan boshqariladigan
	Yurish tezligi	0-0.8 km/soat
	Baholash qobiliyati	20°
	Ground Length x Width x 2	1600mm x 230 mm x 2
	Yer bosimi	58 kPa (0.59 kgf/cm²)
Dizel dvigatel	Model	CZ380G
	Ko'chish	1.357L
	Maksimal chiqish	14.7Kw
	Boshlash usuli	Elektr ishga tushirish
	Bak hajmi	20L
Xavfsizlik moslamalari	Moment cheklovchisi, ag'darilishga qarshi qurilma, blokirovka moslamasi, ilgakni ortiqcha o'rash moslamasi, ortiqcha yuklanish signalizatsiyasini cheklovchi, uch rangli signal chiroqchasi, favqulodda to'xtatish tugmasi.
Tizim kuchlanishi	AC380V(50Hz)+Support customization
Hajmi	Uzunlik x Kenglik x Balandlik	4100mm x 955mm x 1700mm

Olib tashlash stoli

Lifting Table at Maximum Extended Outrigger

3.6m boom		5.6m boom		7.6m boom		9.6m boom		11.6m boom		13.6m boom
Working Radius(m)	Nominal yuk (t)	Working Radius(m)	Nominal yuk (t)	Working Radius(m)	Nominal yuk (t)	Working Radius(m)	Nominal yuk (t)	Working Radius(m)	Nominal yuk (t)	Working Radius(m)	Nominal yuk (t)
0.8	4.0	1.2	3.2	1.5	2.5	1.9	1.8	2.2	1.2	2.5	0.8
1.8	3.5	2.9	2.8	3.9	2.0	4.8	1.2	5.8	1.0	6.9	0.6
2.8	3.0	4.3	2.5	5.9	1.8	7.4	1.0	9.0	0.8	8.4	0.4
3.4	2.0	5.3	1.5	7.2	1.2	9.0	0.8	11	0.6	12.9	0.3
3.7	1.2	5.6	0.8	7.6	0.6	9.6	0.4	11.6	0.3	13.6	0.2
